This issue recommends a low code platform based on code generators! Back-end separation architecture SpringBoot2.x, SpringCloud, Ant Design&Vue, Mybatis plus, Shiro, JWT, support for microservices. Powerful code generator allows one-click generation of back-end code to achieve low code development!

project introduction

JeecgBoot provides a series of low-code modules to achieve true zero code Online development: Online form development, online reports, report configuration capabilities, online chart design, large screen design, mobile configuration capabilities, form designer, online design flow, process automation configuration, plug-in capabilities (pluggable) and more!

The purpose of JEECG is: simple functions are implemented by OnlineCoding configuration, so as to achieve zero code development; Complex functions are generated by code generator and manually Merge to achieve low code development, which not only ensures intelligence but also gives consideration to flexibility. Low code development while supporting flexible coding, to solve the current low code products generally inflexibility disadvantages!

JEECG business process: The use of workflow to achieve, extend the task interface for development and writing business logic, form to provide a variety of solutions: form designer, online configuration form, coding form. At the same time, the separation design of process and form is realized (loose coupling), and the flexible configuration of task nodes is supported, which not only ensures the confidentiality of the company process, but also reduces the workload of developers.

Jeecg-Boot low-code development platform, can be applied in the development of any J2EE project, especially suitable for SAAS projects, enterprise information management system (MIS), internal office system (OA), enterprise resource planning system (ERP), customer relationship management system (CRM), etc., its semi-intelligent manual Merge development method, It can significantly improve the development efficiency by more than 70% and greatly reduce the development cost.

technical framework

Development environment

Language: Java 8
IDE(JAVA) : IDEA/Eclipse install the lombok plug-in
IDE(front end) : WebStorm or IDEA
Dependency Management: Maven
Database: MySQL5.7+ & Oracle 11g & Sqlserver2017
Cache: Redis

rear-end

Base framework: Spring Boot 2.3.5.RELEASE
Microservices framework: Spring Cloud Alibaba 2.2.3.RELEASE
Persistence layer framework: Mybatis-plus 3.4.3.1, Minidao
Report tool: jimureport 1.3.78
Security framework: Apache Shiro 1.7.0, Jwt 3.11.0
Microservices technology stack: Spring Cloud Alibaba, Nacos, Gateway, Sentinel, Skywalking
Database connection pool: Alibaba Druid 1.1.22
Cache framework: redis
Log print: logback
Others: fastjson, poi, Swagger-ui, quartz, lombok (Simplified code), etc.

Front end

Vue 2.6.10,Vuex,Vue Router
Axios
ant-design-vue
webpack,yarn
vue-cropper – Profile picture clipper assembly
@antv/ g2-Alipay AntV data visualization chart
Viser-vue-antv /g2 encapsulation implementation
eslint, @vue/cli 3.2.1
Vue-print-nb-print

Total Solution for Microservices (2.4+ version)

1、

Services register and discover Nacos

2. Unified configuration center Nacos

3. Routing gateway gateway(three loading modes)

4. Distributed http feign

5. Fuse and degrade Sentinel

6, distributed file Minio, Ali OSS

7. Unified authority control JWT + Shiro

8. Service monitor SpringBootAdmin

9. Link tracing Skywalking

10. Messaging middleware RabbitMQ

11. Distributed task xxl-job

12. Distributed transaction Seata

13. Distributed log elk + kafka

14, Support docker-compose, k8s, jenkins

15. CAS Single sign-on

16. Traffic limiting

76816a2bef1446358113c7a8ef571b57noop.image_

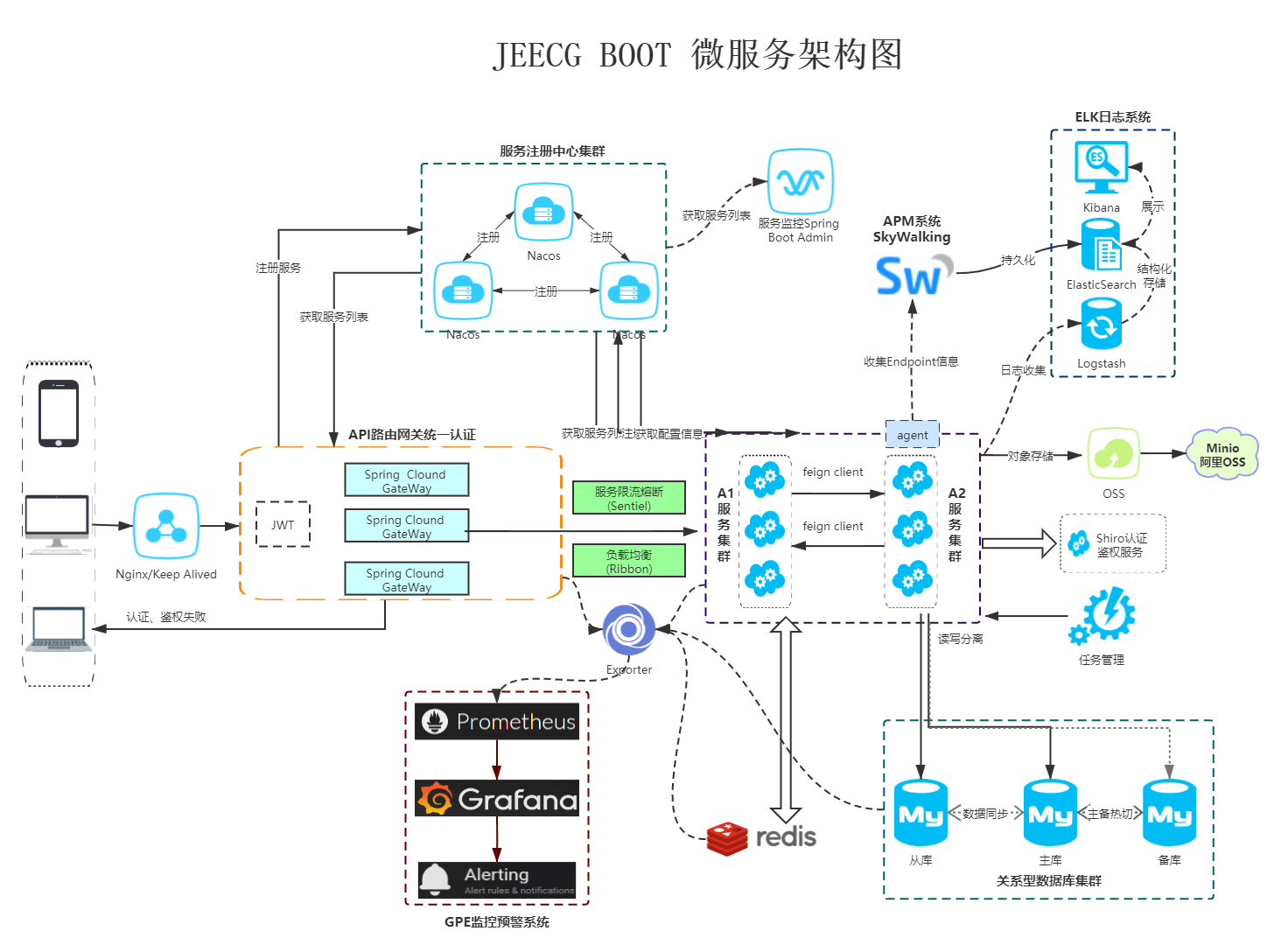

architecture diagram

f565517df6e94f87a06964a51ca6c176noop.image_

Product function blueprint

Project download and run

Pull the project code

git clone https://github.com/zhangdaiscott/jeecg-boot.gitcd  jeecg-boot/ant-design-vue-jeecg

Install node.js
Switch to the ant-design-vue-jeecg folder

# install yarnnpm install -g yarn# Download dependency yarn install# start yarn run serve# Compile project yarn run build# Lints and fixes filesyarn run lint

System effect

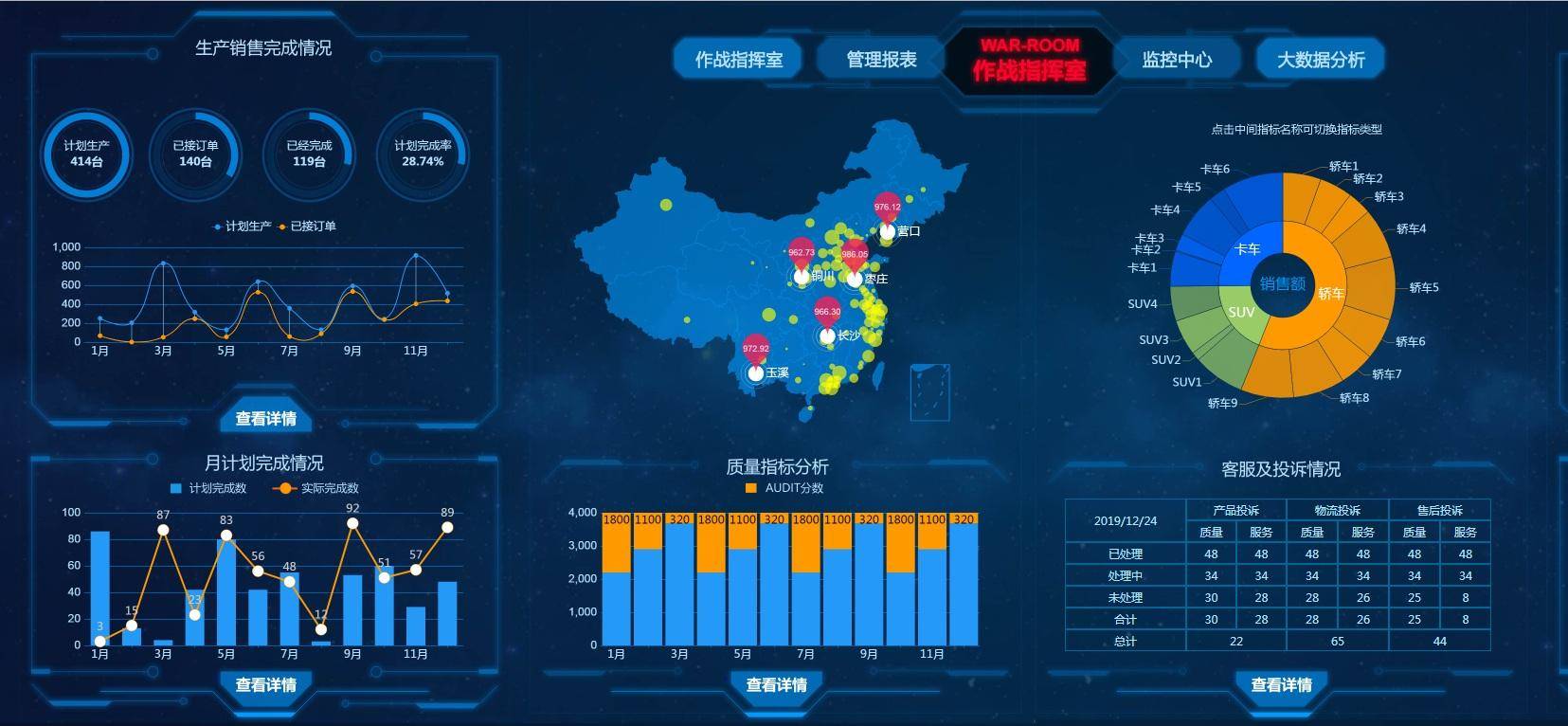

2a1f2d730fd9403f992c943254877519noop.image_

Large screen template

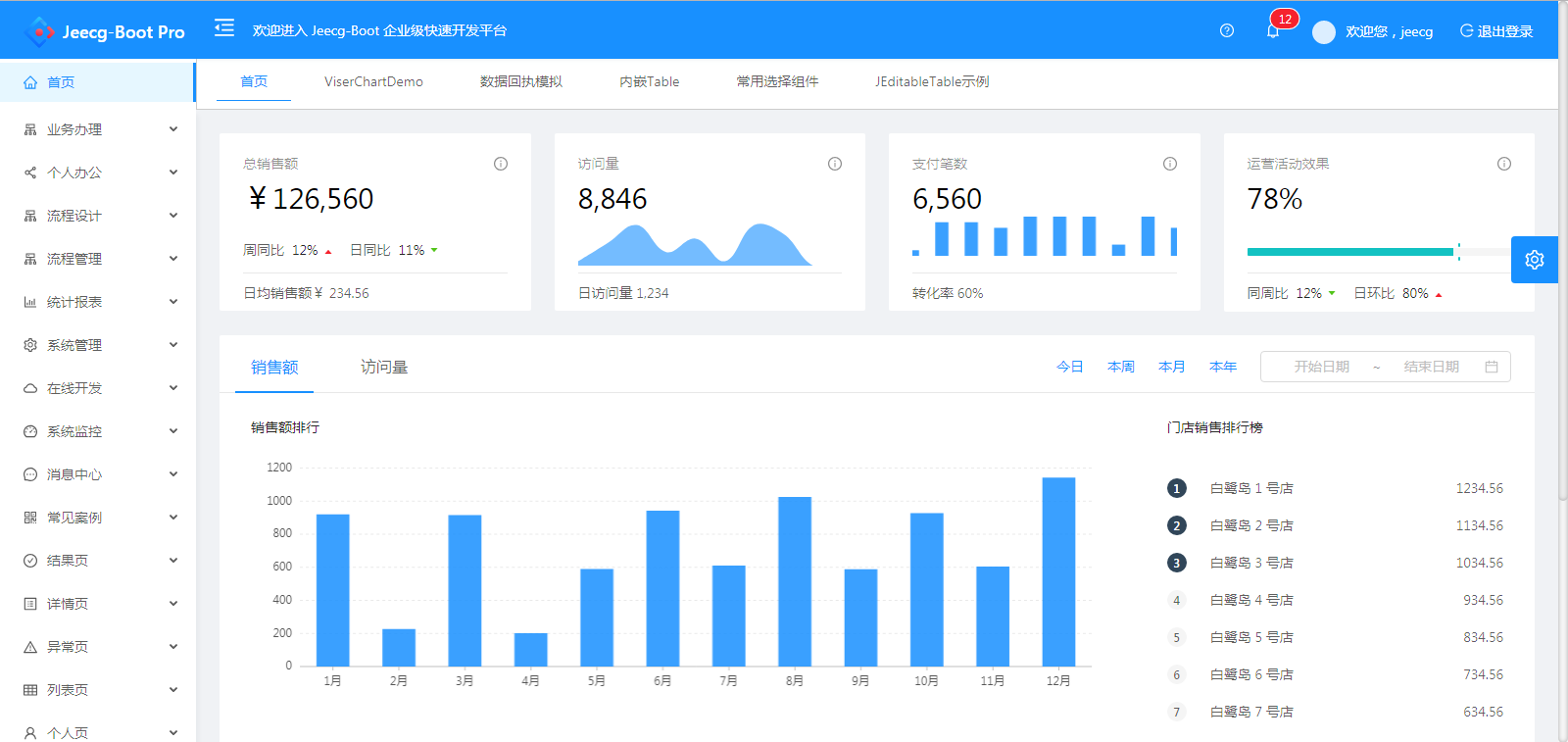

25061dfb66d54bca92f2f57f33d04504noop.image_

pc software

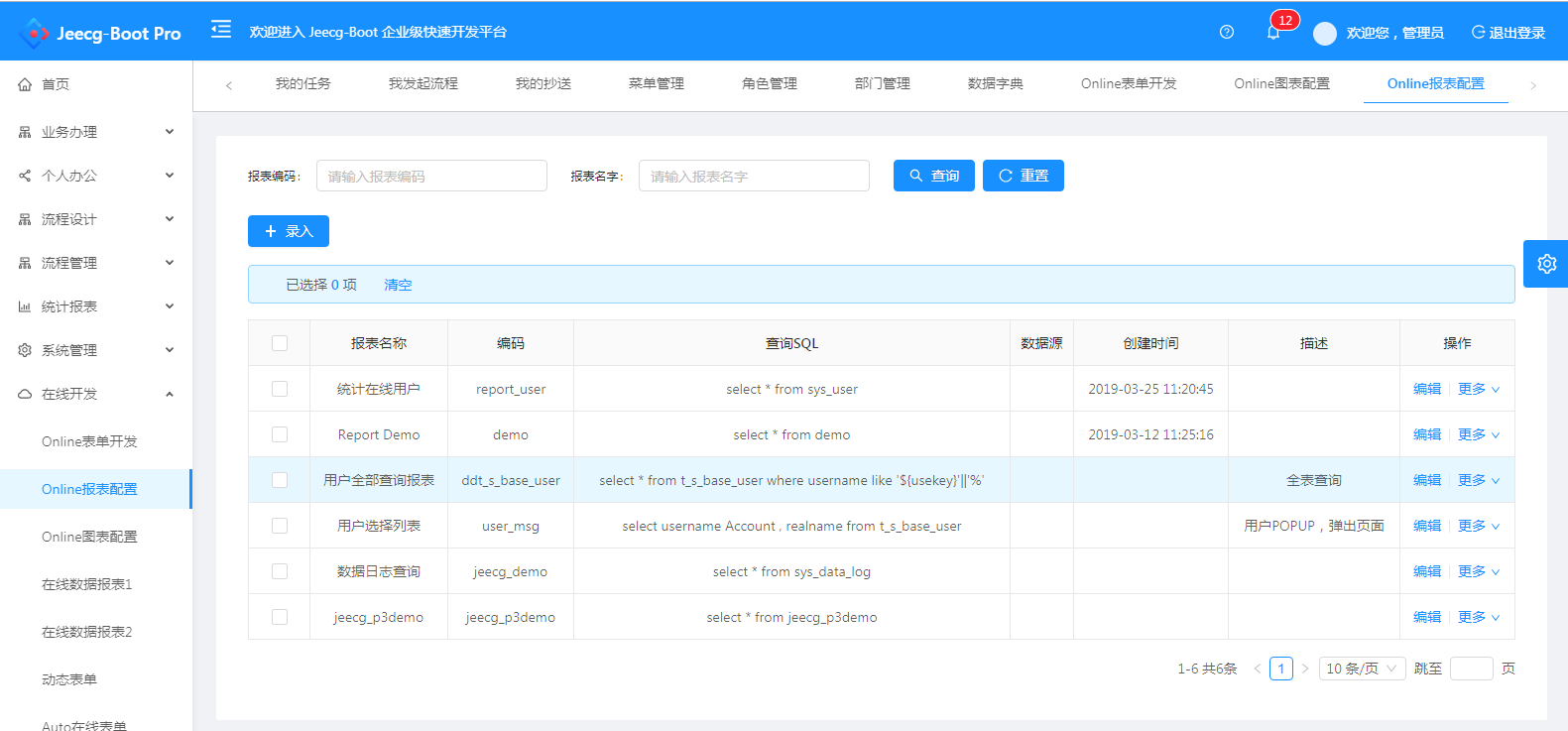

699ebde0e14047589c655a7441ede091noop.image_

pc software

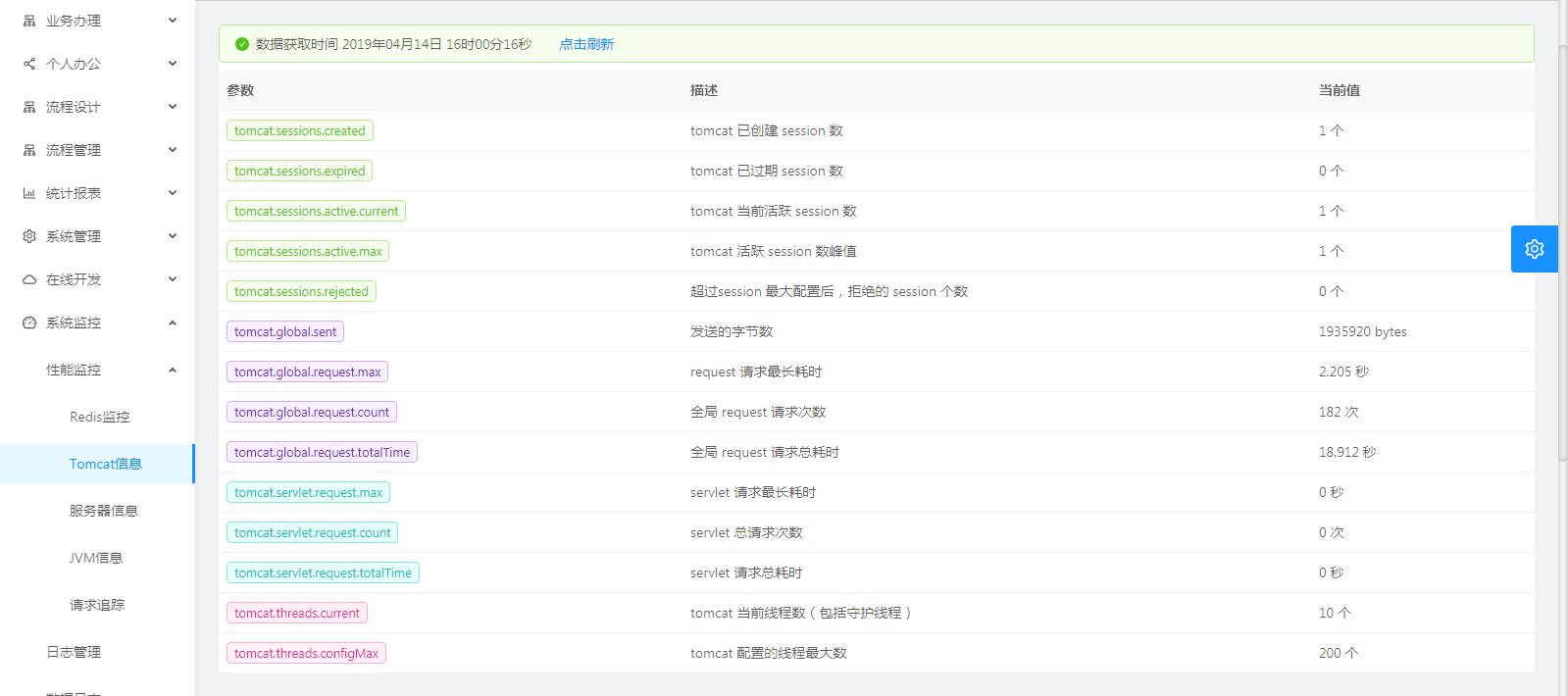

ed154e6915b24154b9c472c995c3ac2dnoop.image_

pc software

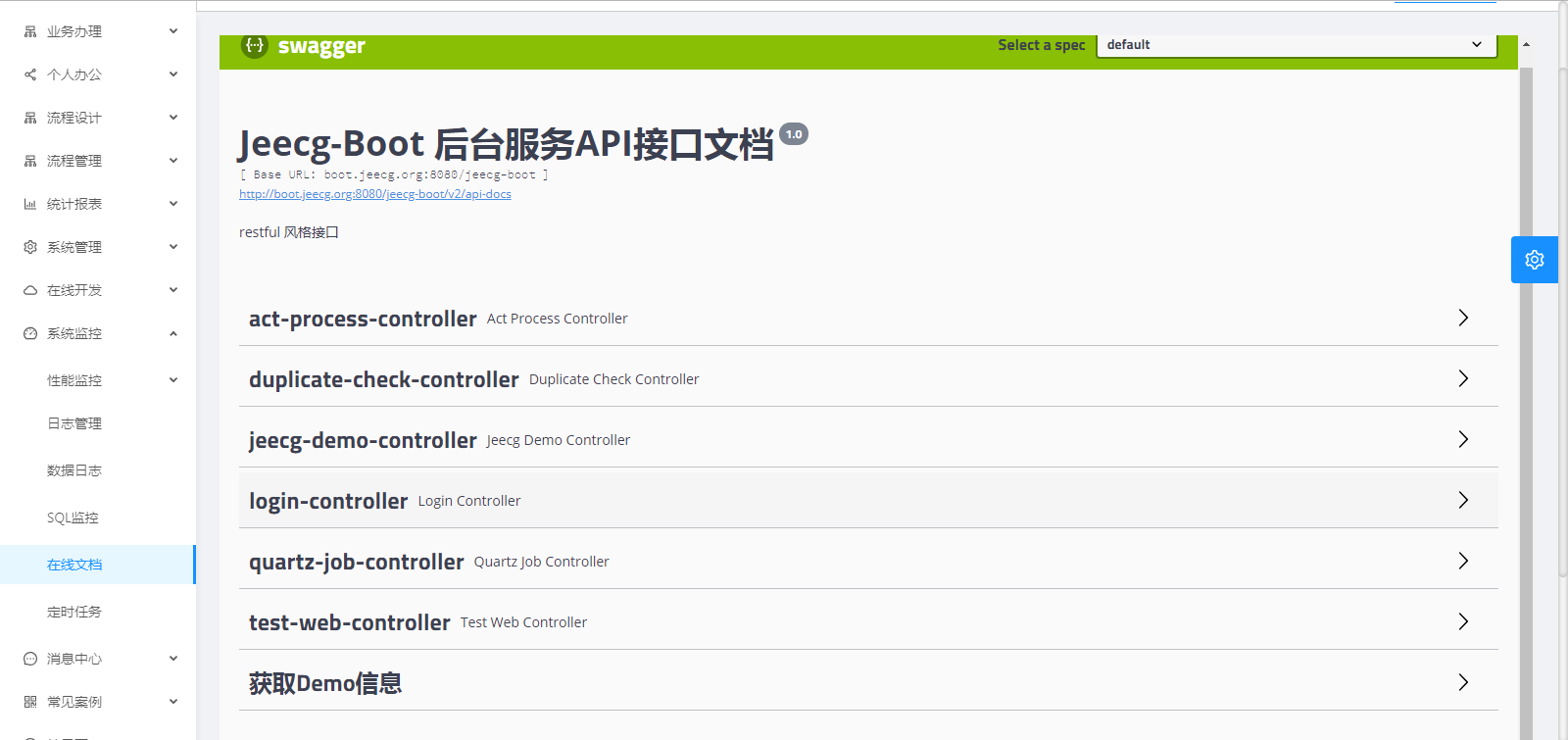

71ebe8133f9c495fb3fcabf6fe5219a2noop.image_

pc software

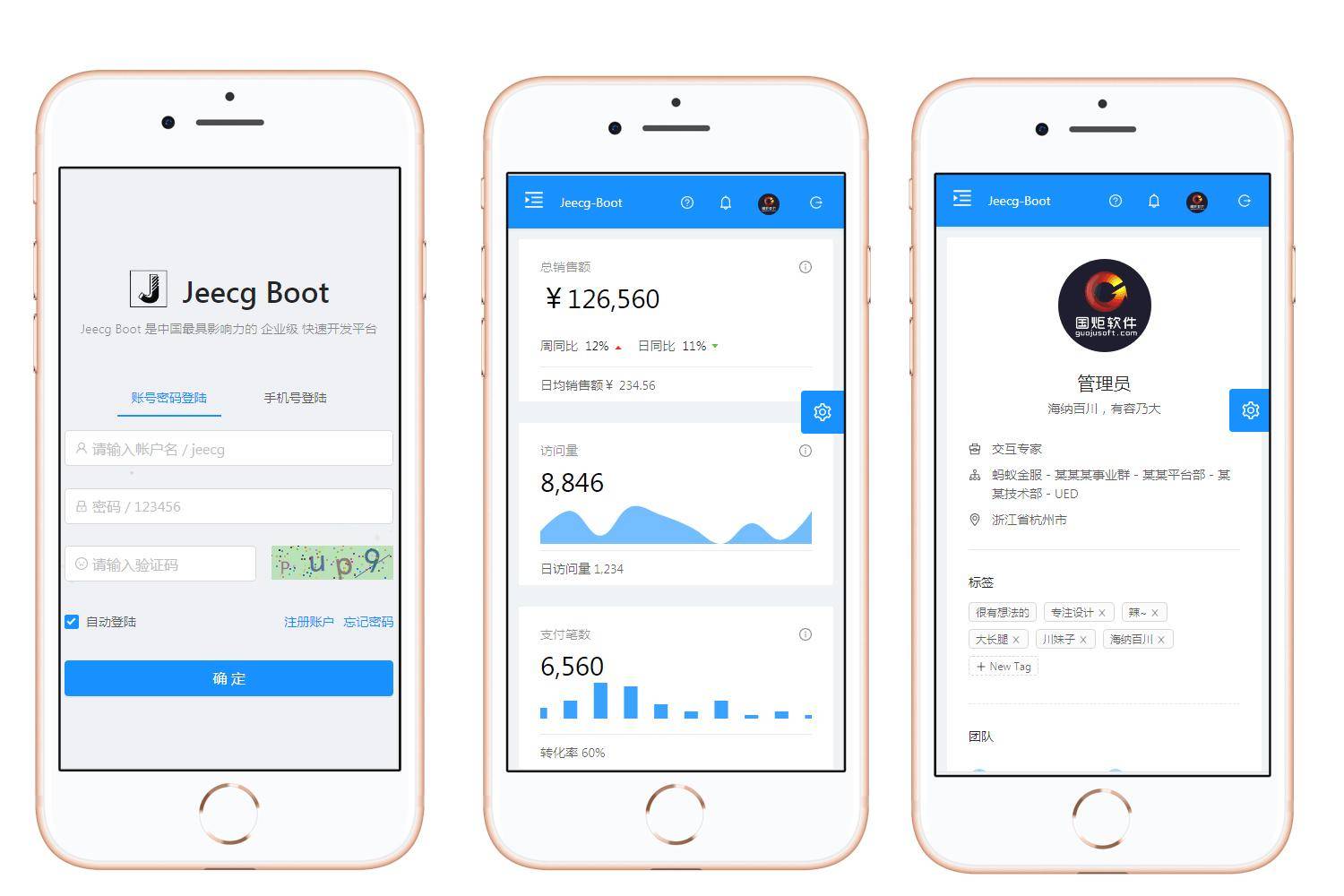

ce73f5de7f3c4706ae95bac46bd3fb08noop.image_

pc software

remark

The eslint rules are updated after the @vue/cli upgrade. Because all.vue files are affected, you need to verify them one by one. Temporarily close some rules that are not originally verified, and gradually correct these rules during later maintenance

Development document:
http://doc.jeecg.com/2044238

Gitee address: Download
