A data visualization development platform based on SprigBoot+Vue, with flexible drag-and-drop layout and rich general components to help you quickly build and iterate large screen pages of data.

Back-end architecture selection

1,	SpringBoot	Main framework
2,	JFinal	DB-based database operation
3,	Druid	Database connection pool
4、	Swagger2	Interface Test framework
5,	Maven	Project Construction management

Front-end architecture selection

1,	vue	mvvm framework
2,	vue-router	Route Management
3,	vuex	Status management
4,	axios	HTTP library
5,	echarts	Visual chart
6,	iview	UI component library
7,	jquery	Library

Feature

Native support multi-device automatic adaptation, truly achieve one development, multiple operations
Drag-and-drop page layout designer, support box selection components, component copy and paste, multi-component combination and other flexible designer functions
Runtime style editing to achieve everything you can imagine
Run time custom script editing, through a rich API interface, to help you achieve a richer page interaction effect
Rich component input and output animation, so that your page is no longer boring
Support for scalable Echarts chart configuration
Support for chart theme customization and switching at the engineering level and page level
Native support for multiple data source bindings (static data, API interfaces, database scripts, CSV data files)

Development environment deployment

Database initialization

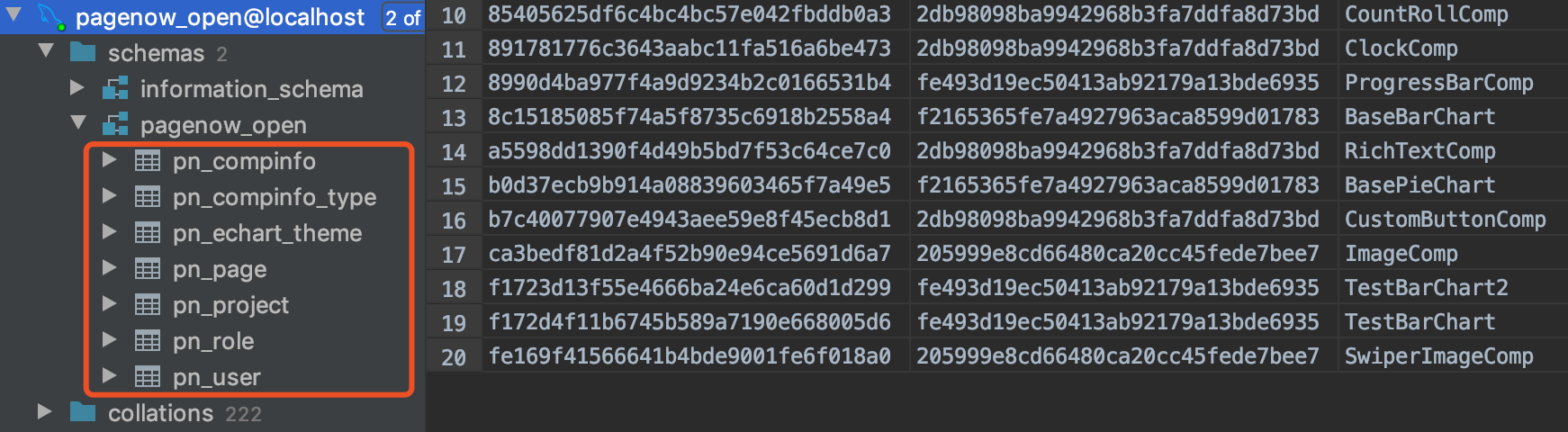

< p data – track = “54” > using the database management tools, new database, named pagenow_open, then run the directory server/SRC/main/resources/db pagenow_open. Under the SQL script to initialize, there were a total of 7 tables open source version, As shown below

PageNow- Basic open source data visualization development platform插图1

< Back-end program start

Note: JDK version 1.7 or above is recommended, please configure environment variables by yourself.

Use the IDEA development tool, directly open the server directory, and then run mvn related commands to install related dependency packages. Generally, IDEA will automatically download related dependency packages

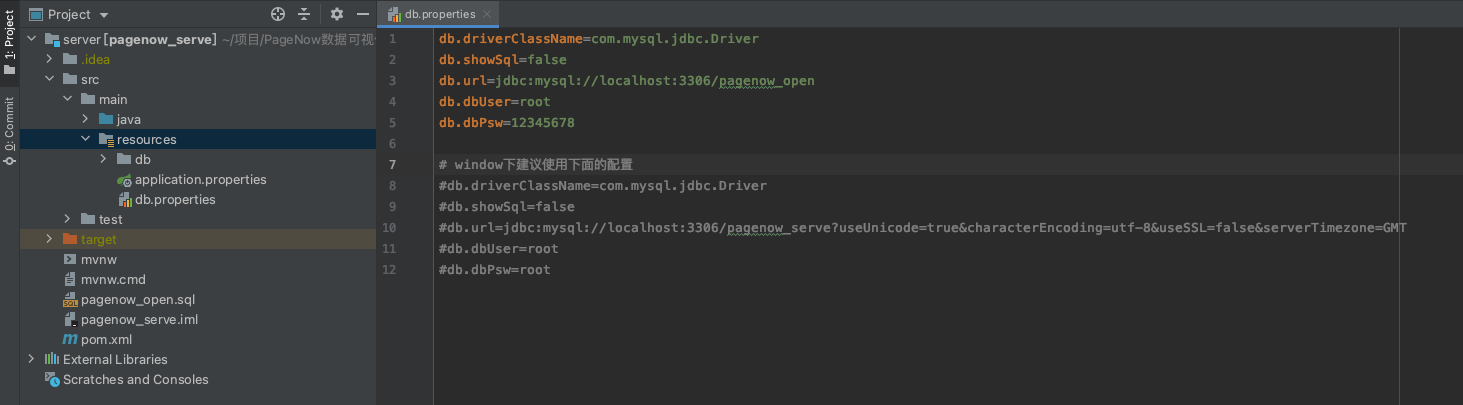

Open the db.properties configuration file in the resources directory as shown below

PageNow- Basic open source data visualization development platform插图2

Modify the relevant database connection configuration

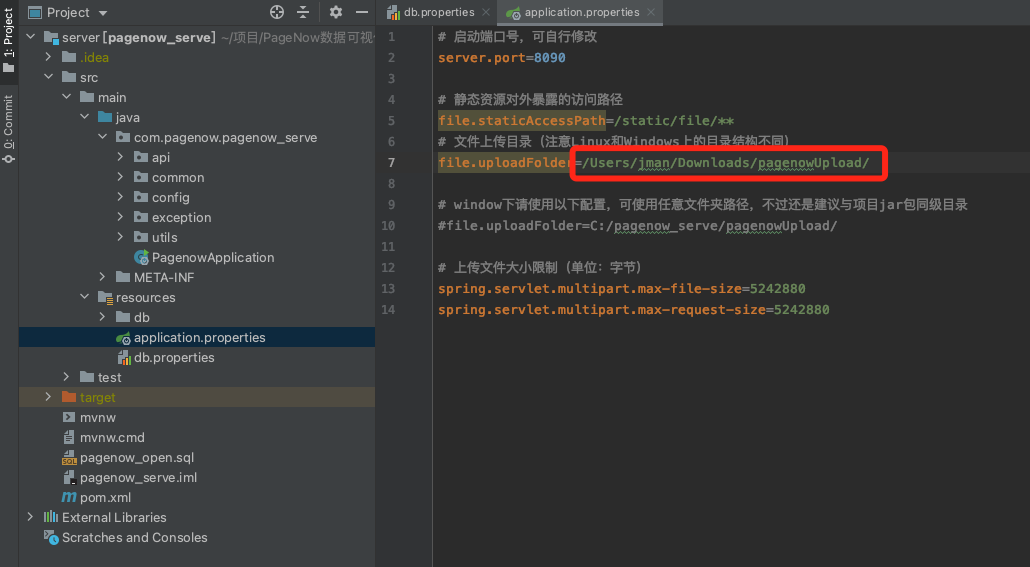

Then open the application.properties configuration file

in the resources directory

PageNow- Basic open source data visualization development platform插图3

In this configuration file, you need to modify the configuration in the red box. File. uploadFolder is configured as the system attachment storage directory. The configuration is based on your operating system environment. Then configure the absolute path to the file.uploadFolder with a slash at the end.

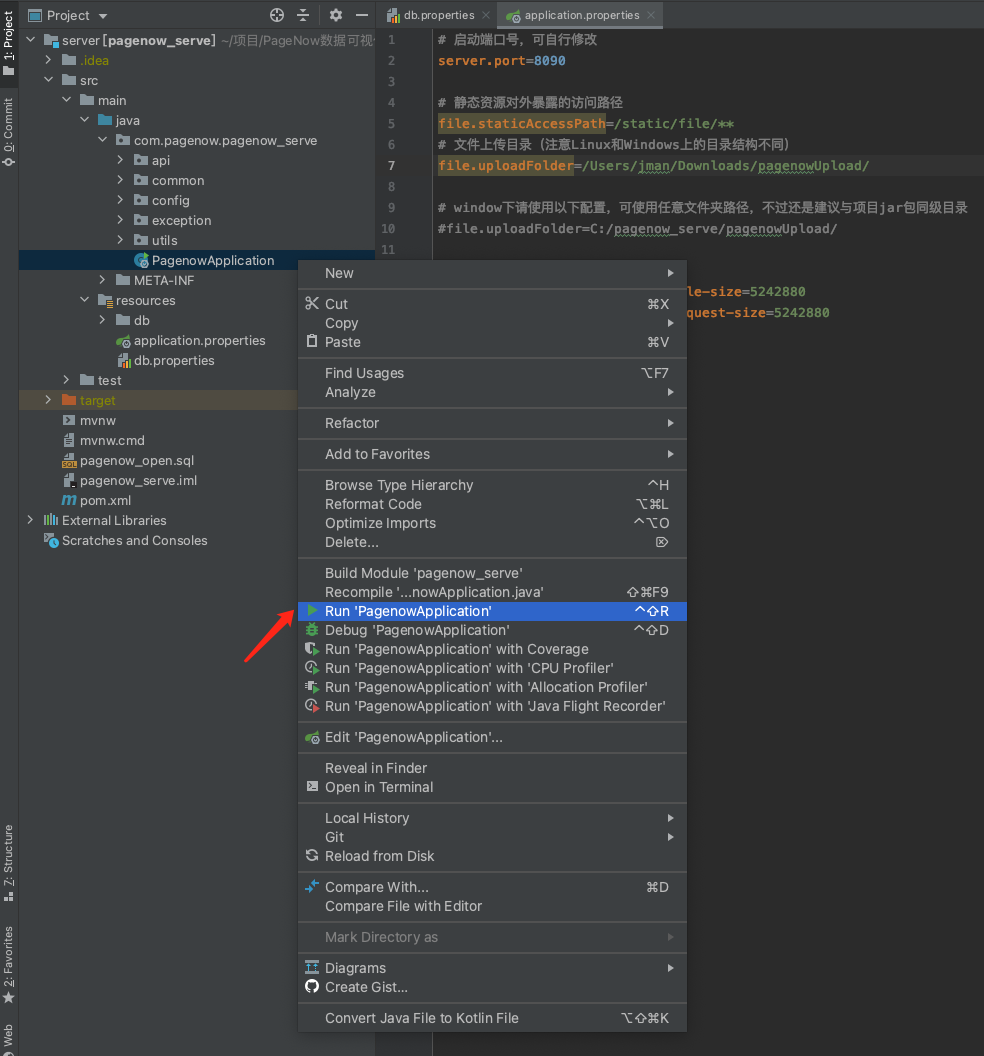

Then right-click on the main file PagenowApplication and select Run ‘PagenowApplication’ to run

PageNow- Basic open source data visualization development platform插图4

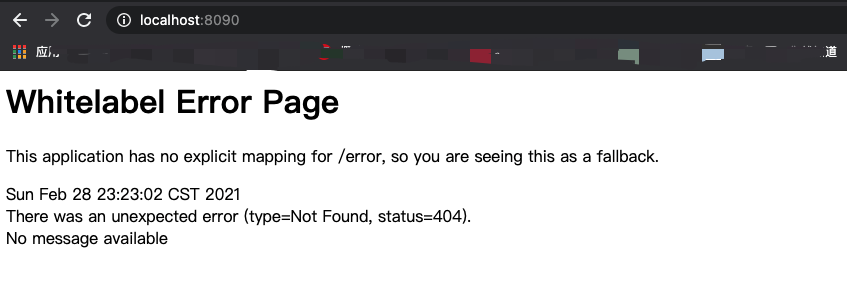

Open the browser and input localhost:8090 to verify the normal operation, as shown in the following picture, which proves that the back-end program runs successfully

PageNow- Basic open source data visualization development platform插图5

Front-end program start

Open the web directory using webstorm, then run the command to install the dependencies:

yarn install

Note: The PageNow project does not support the use of npm to install dependency packages and start the project; otherwise, the project cannot start. If yarn is not installed, you can install it by yourself.

PageNow- Basic open source data visualization development platform插图6

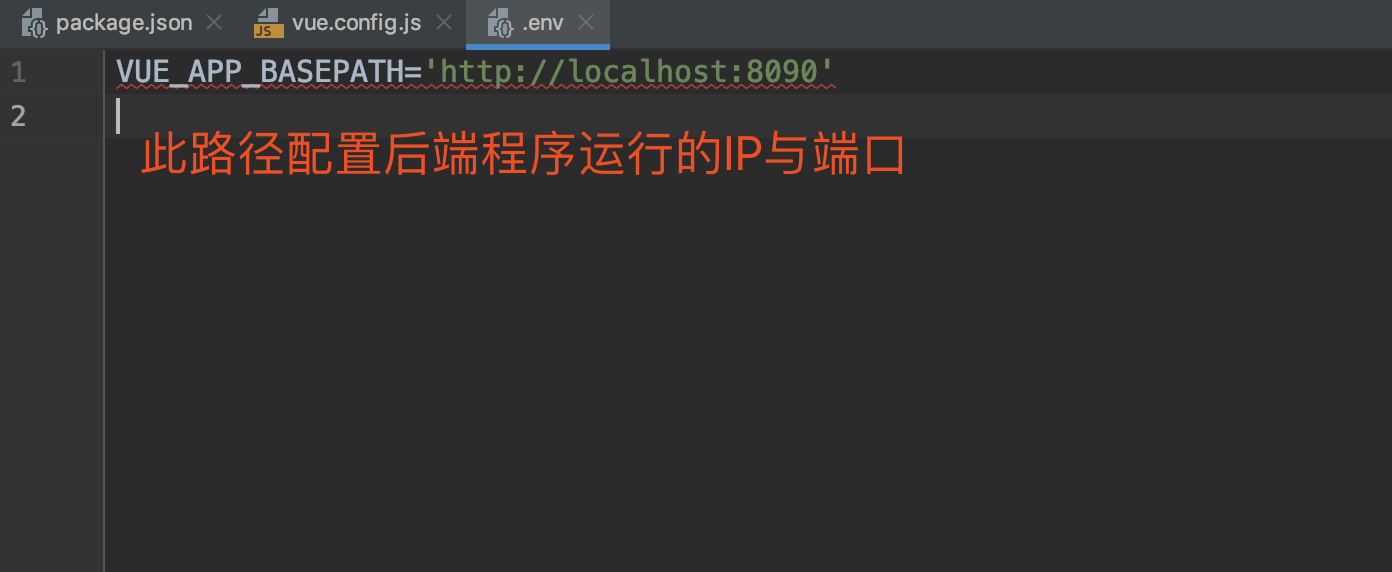

Modify the env configuration file

PageNow- Basic open source data visualization development platform插图7

Front-end projects start using port 8081 by default, which can be modified in the vue.config.js file. Run the following command to start the project:

yarn serve

After the startup is successful, open the browser and enter
http://localhost:8081/pagenow can access the system < / p >
