This issue recommends a low code data visualization development platform based on Vue3 – GoView.

GoView is a low-code data visualization development platform built by Vue3, which encapsulates chart or page elements as basic components, and can complete business requirements without writing code.

Technical point

• Framework: written based on Vue3 framework, using hooks to separate part of the logic, make the code structure more clear;
• Type: TypeScript is used for type constraints to reduce the probability of unknown errors, and logical content can be boldly modified;
• Performance: Multiple performance optimization, using page lazy loading, component dynamic registration, data scrolling loading and other methods to improve page rendering speed;
• storage: has local memory, some configuration items use storage to store locally, improve the use experience;
• Package: The project carries out detailed package of tools such as: routing, storage, encryption/decryption, file processing, theme, NaiveUI global method, components, etc.

Running project

1 Install

# It is recommended to switch to Taobao source using nrm https://registry.npmmirror.com/
#pnpm
pnpm install

#yarn
yarn install

#npm
npm install

2 Start

#pnpm
pnpm dev

# npm
npm run dev

#yarn
yarn dev

#Makefile
make dev

3 Compile

#pnpm
pnpm run build

# npm
npm run build

#yarn
yarn run build

#Makefile
make dist

Project screenshot

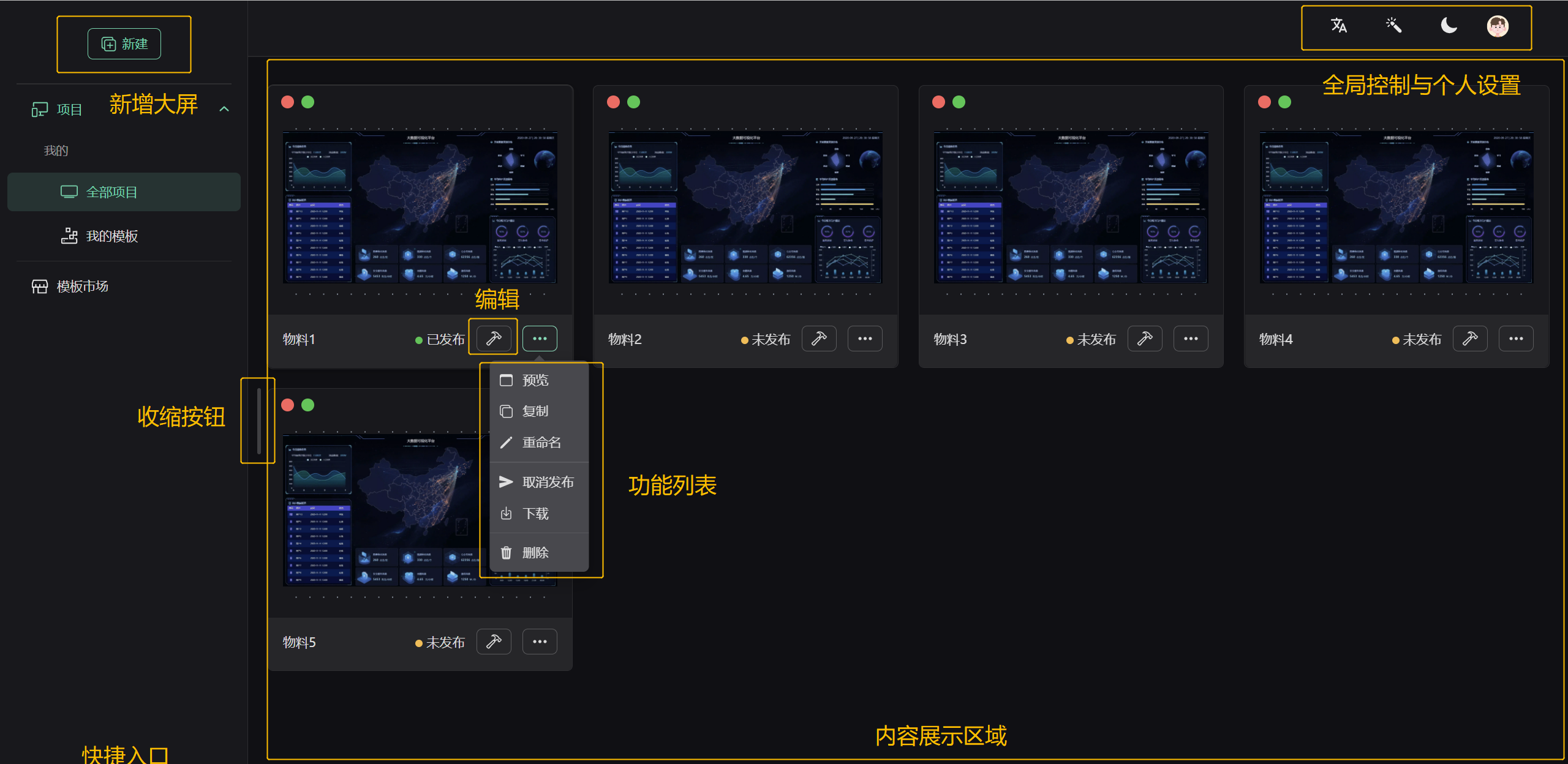

Initial page

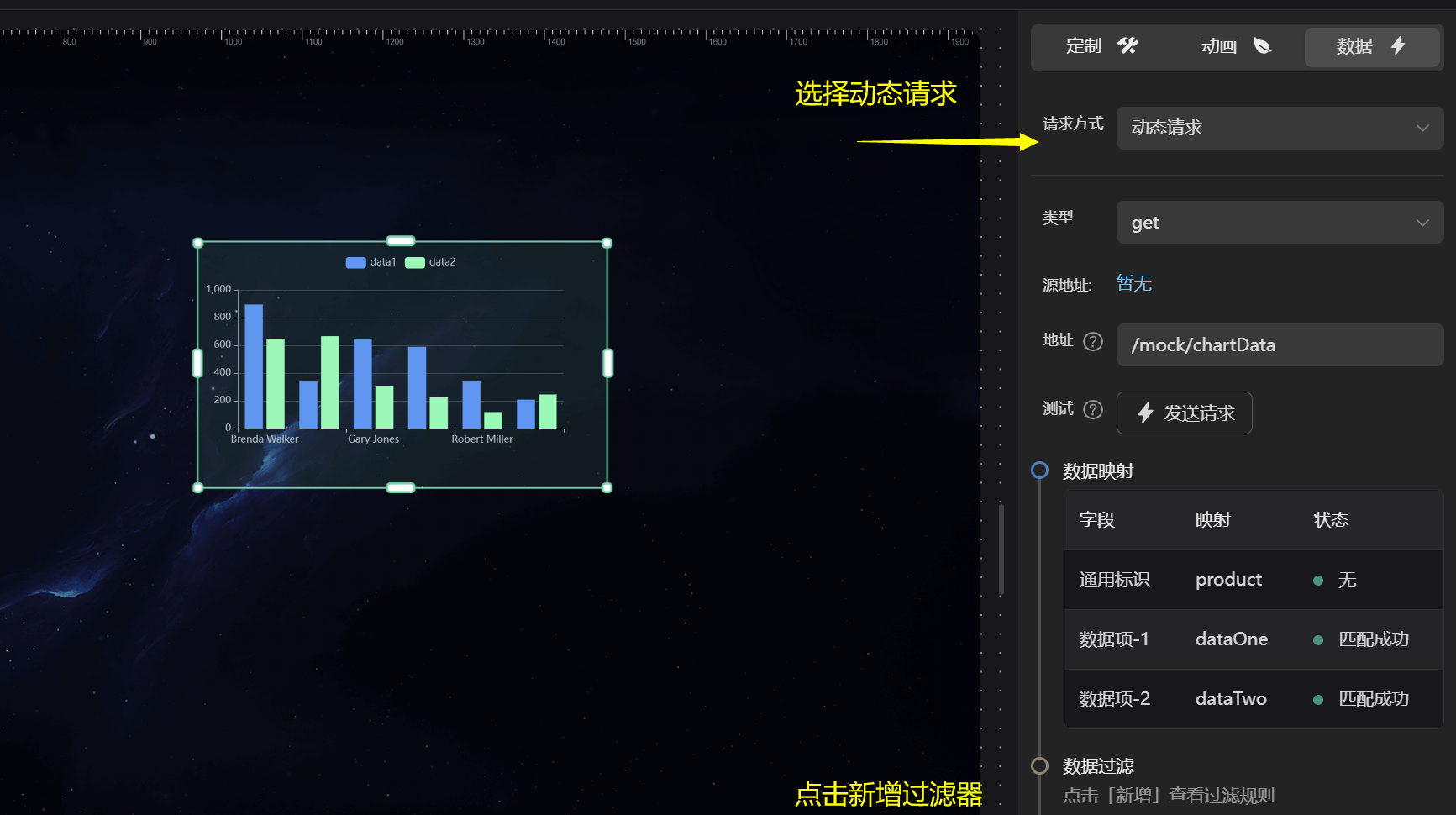

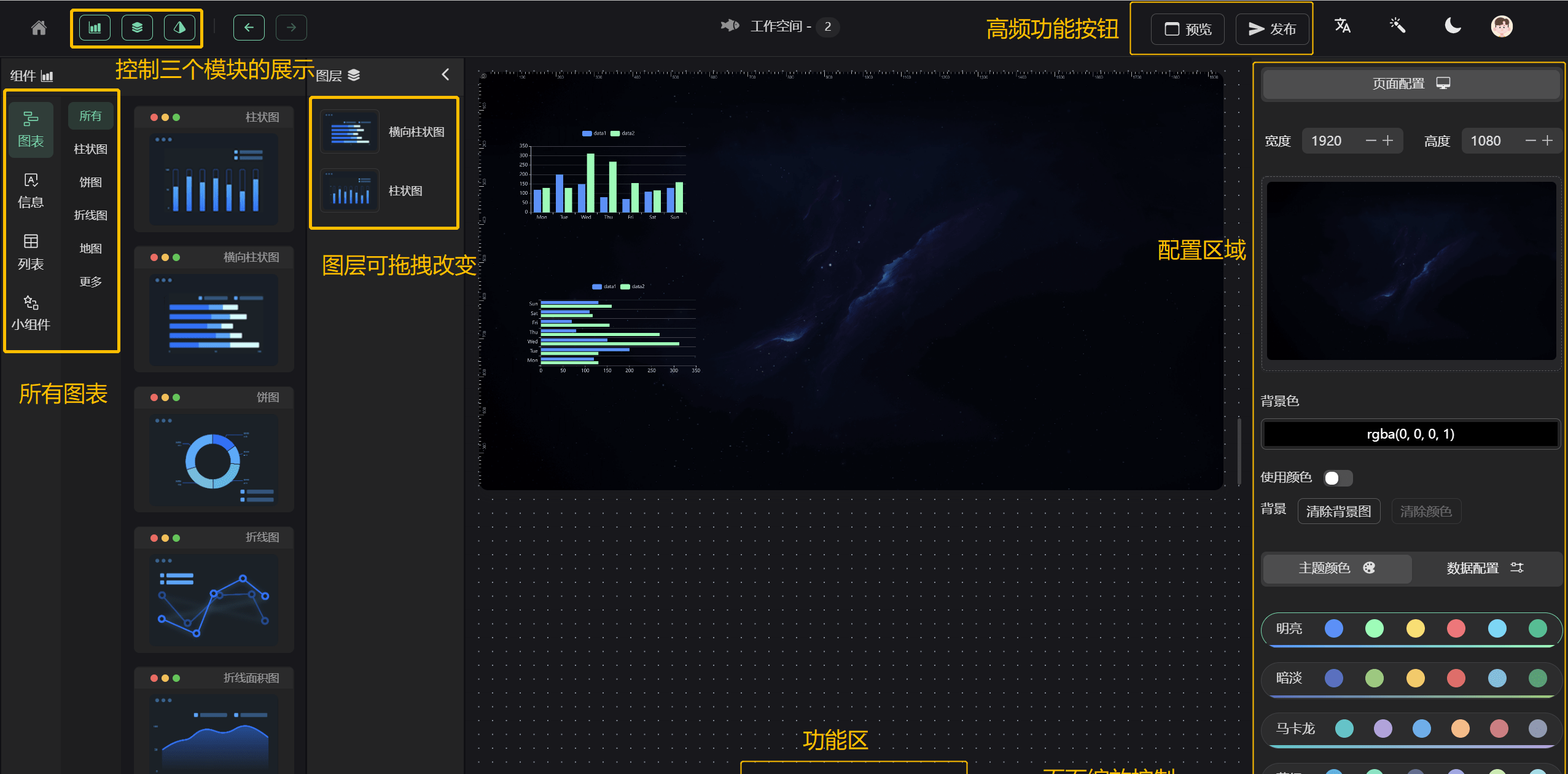

Edit area

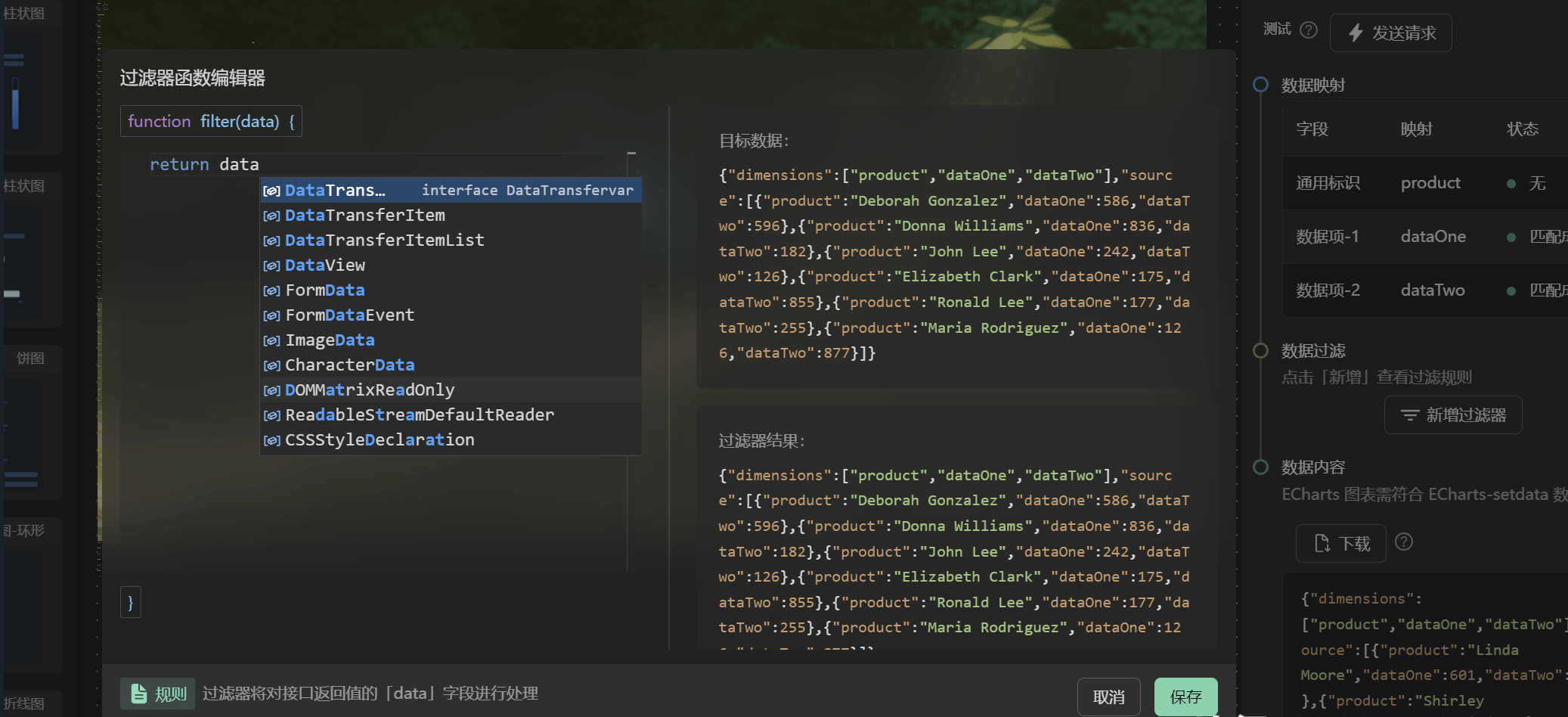

Write a data filtering function

—END—

Open Source protocol: MIT2
