DBSyncer is an open source data synchronization middleware. Provides synchronization scenarios such as Mysql, Oracle, SqlServer, Elasticsearch(ES), Kafka, and SQL(Mysql/Oracle/SqlServer). You can upload plug-ins to customize synchronous conversion services, monitor full and incremental data statistics, and warn application performance.

Combination drive, custom library synchronization to library combination, combination between relational database and non-relational, any collocation table synchronization mapping relationship
Real-time monitoring, driving full or incremental real-time synchronization of operating status, results, synchronization logs and system logs
Develop plugins and customize conversion synchronization logic

Installation and configuration

< Steps

Install JDK 1.8 (details omitted)
Download installation package DBSyncer-1.0.0-Beta.zip
Decompress the installation package, run bin/startup.bat for Windows, and bin/startup.sh for Linux.
Open your browser to http://127.0.0.1:18686
Account and password: admin/admin

Incremental Synchronization Configuration (source repository)

Mysql

Dump Binlog binary logs. The Master synchronizes the Slave, creates IO threads to read data, writes to relaylog, and captures incremental data based on message subscriptions.
Configuration

Modify the my.ini file

# Service unique ID
server_id=1
log-bin=mysql_bin
binlog-format=ROW
max_binlog_cache_size = 256M
max_binlog_size = 512M
expire_logs_days = 7
# Listen to synchronized libraries, multiple libraries using commas ", "concatenate
replicate-do-db=test

Oracle

CDN Registration Subscription. Listen to add, delete and change events, get rowid, execute SQL query according to rowid, get the changed data.
grants the account the permission to listen, and requires that the target source table must define a varchar field of length 18, and implement the operation by receiving the rowid value.

grant change notification to Your account

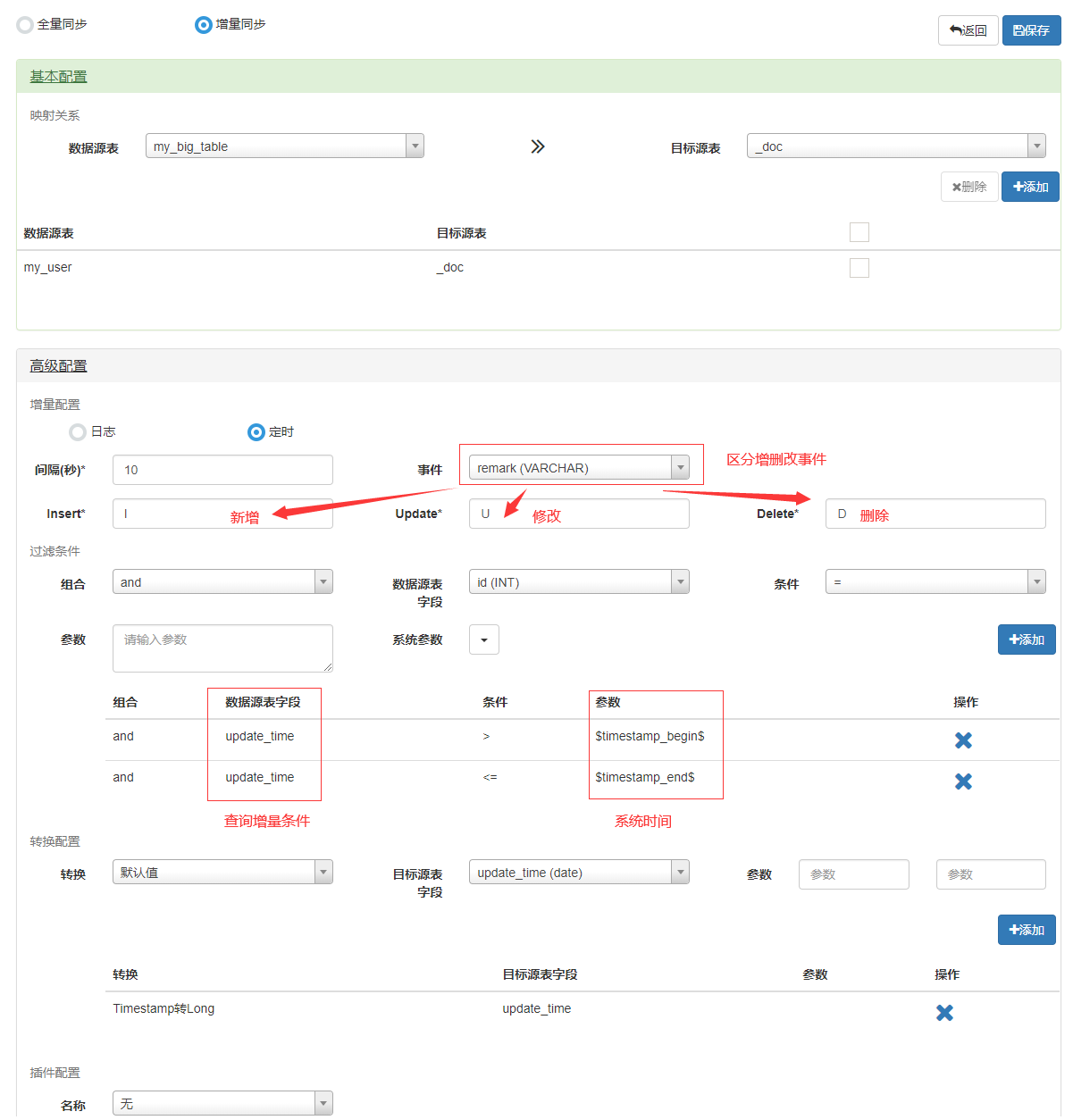

Timing

DBSyncer is an open source data synchronization middleware插图

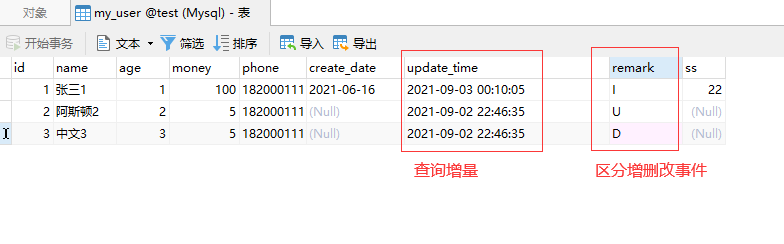

Assumed source table data format

DBSyncer is an open source data synchronization middleware插图1

Preview

DBSyncer is an open source data synchronization middleware插图2

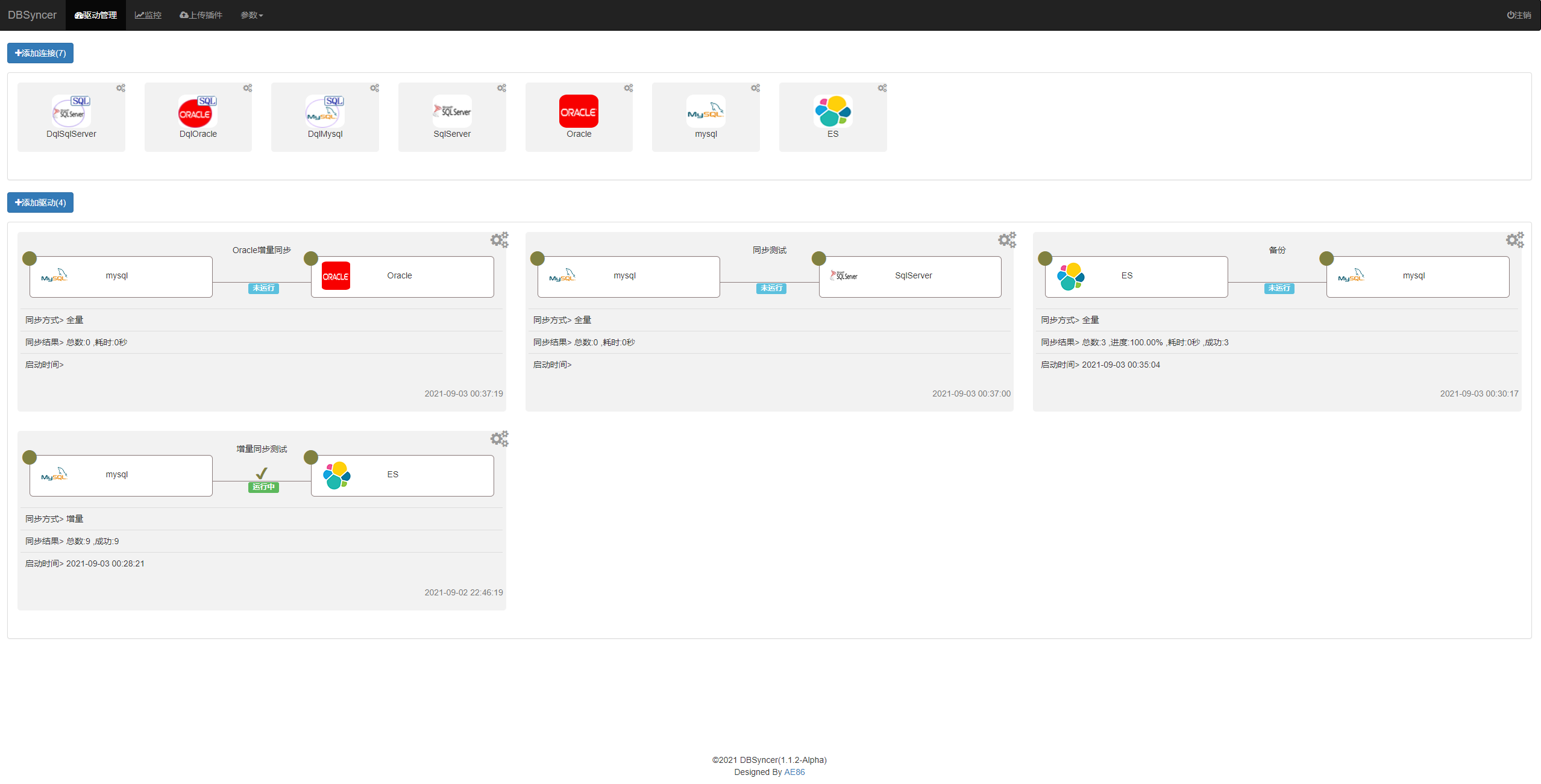

Driver management

DBSyncer is an open source data synchronization middleware插图3

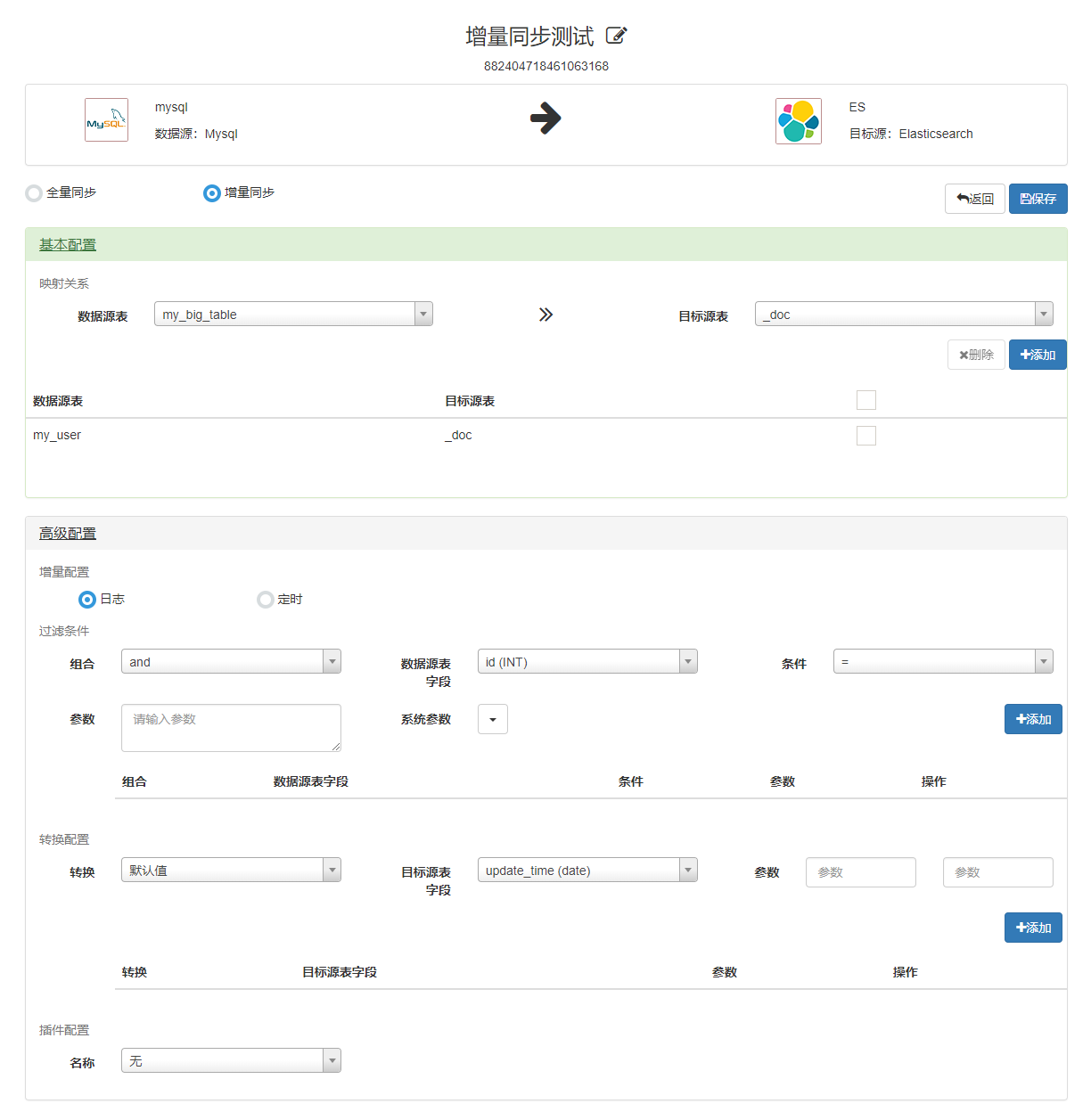

Driver details

DBSyncer is an open source data synchronization middleware插图4

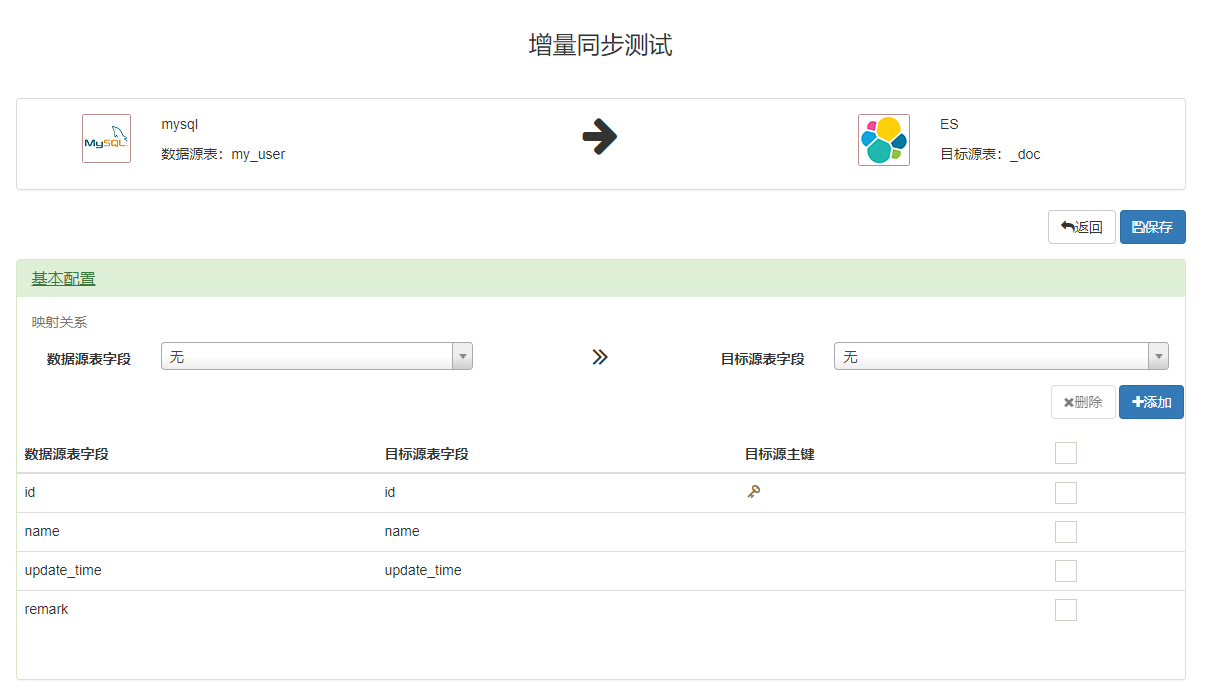

Driver table field relationship configuration

DBSyncer is an open source data synchronization middleware插图5

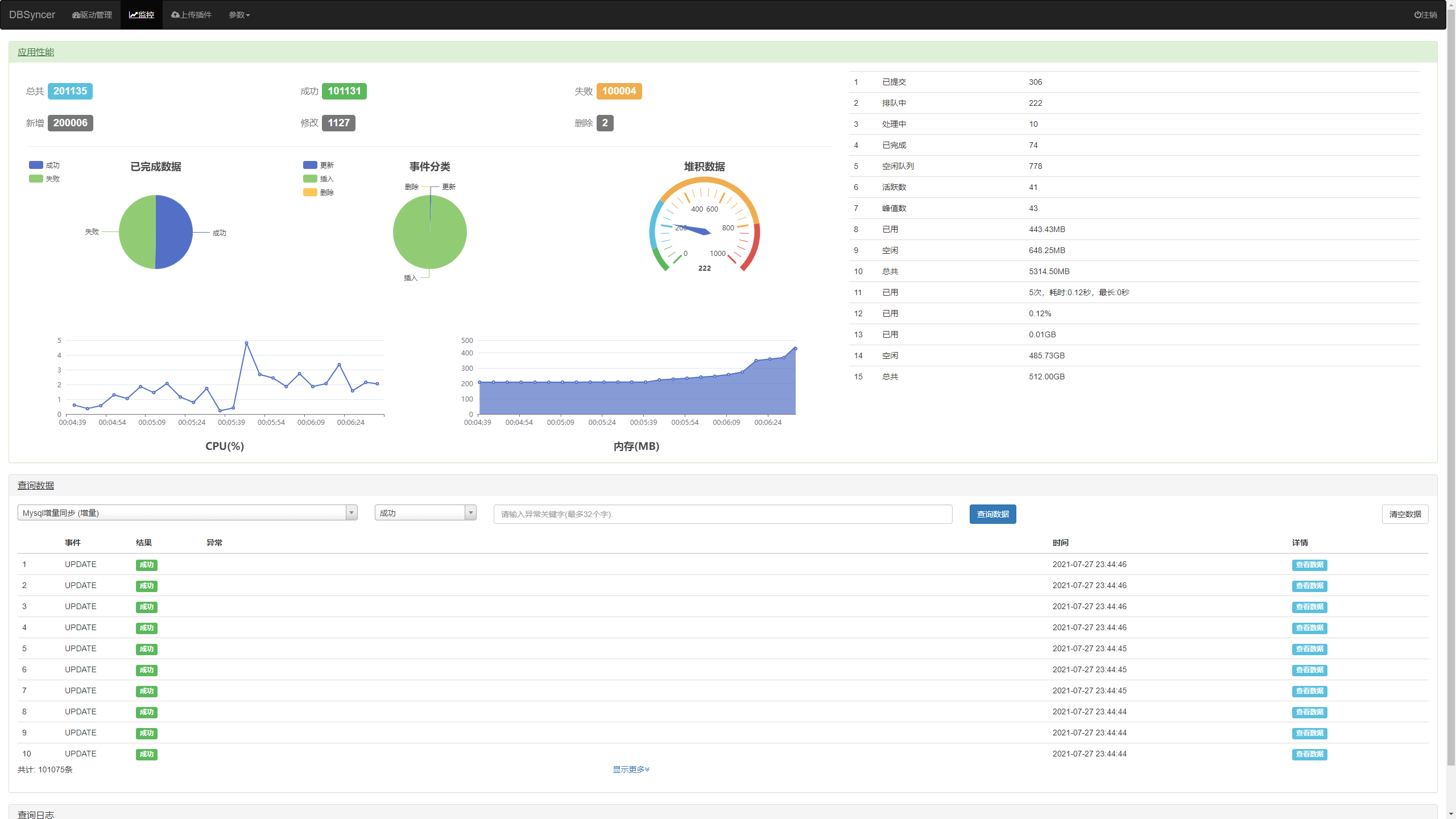

Monitor
