This issue recommends an open source C++ Web server – TinyWebServer.

TinyWebServer is an open source C++ lightweight Web server, which is very suitable for beginners to quickly practice network programming and build their own servers.

Feature

• Concurrency model using thread pool + non-blocking socket + epoll(implemented by both ET and LT) + event handling (implemented by both Reactor and simulated Proactor)
• Use state machine to parse HTTP request messages, support parse GET and POST requests
• Access to server database to achieve web side user registration and login functions, can request server pictures and video files
• Implement synchronous/asynchronous logging system to record the running status of the server
• Webbench stress test can achieve tens of thousands of concurrent connection data exchange

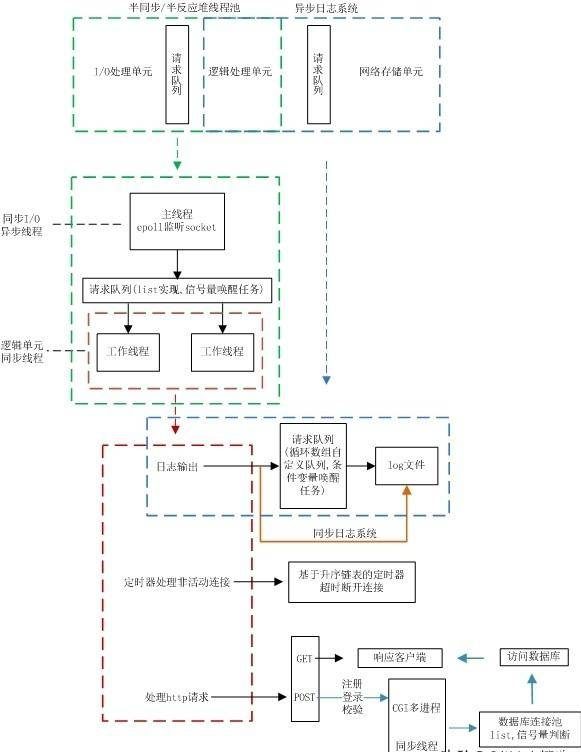

Frame

Demo

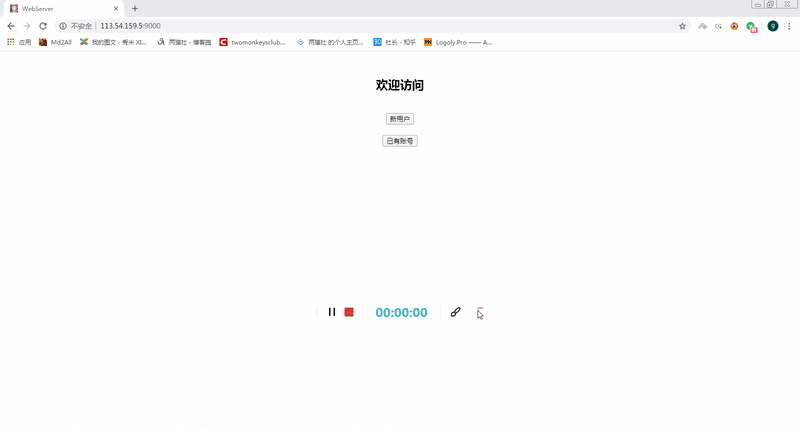

Registration presentation

Login presentation

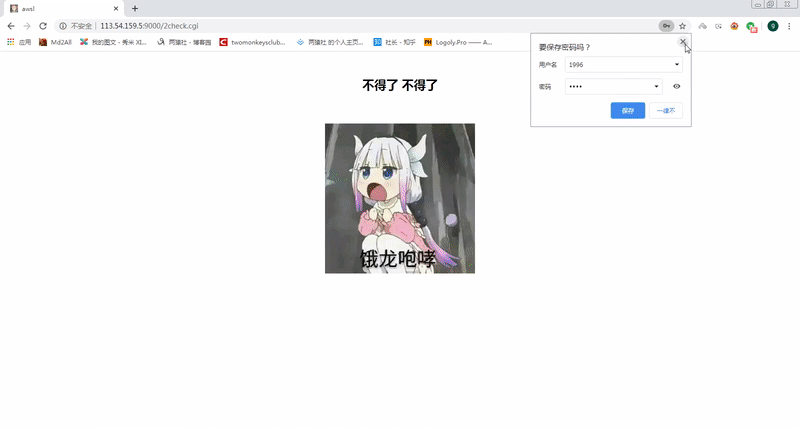

< p data – track = “31” > < strong > request image presentation (6 m) < / strong > < / p >

< p data – track = “36” > < strong > request video file demo (39 m) < / strong > < / p >

Pressure test

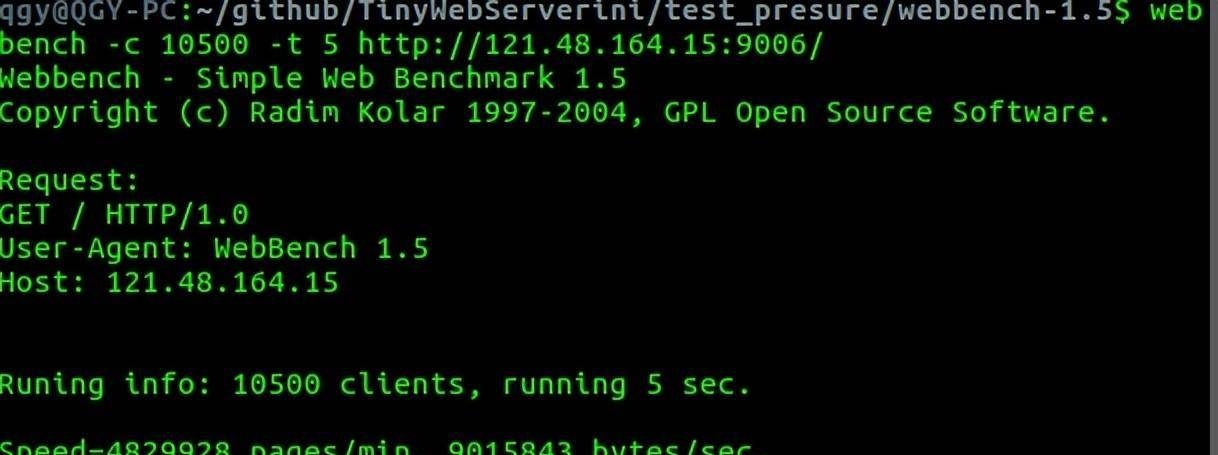

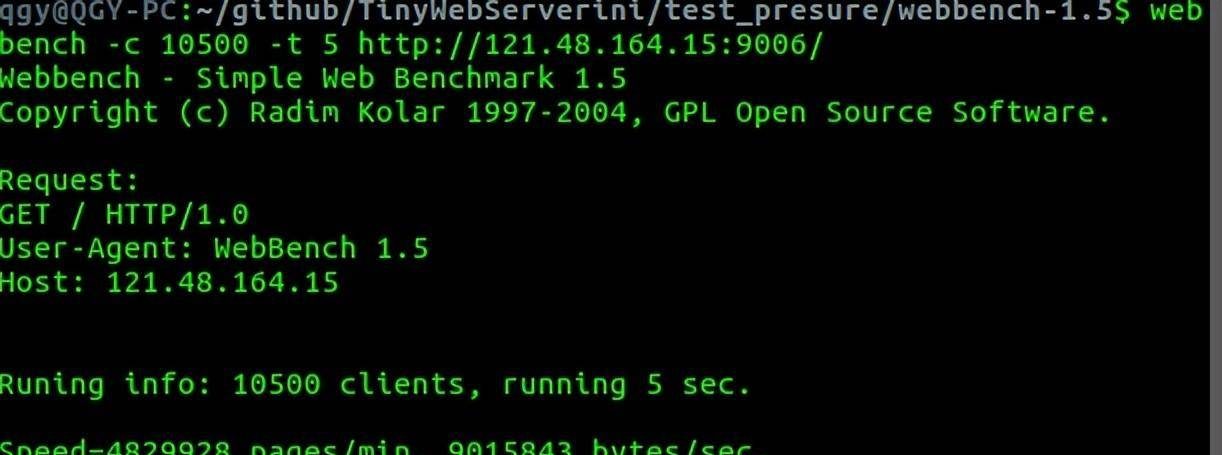

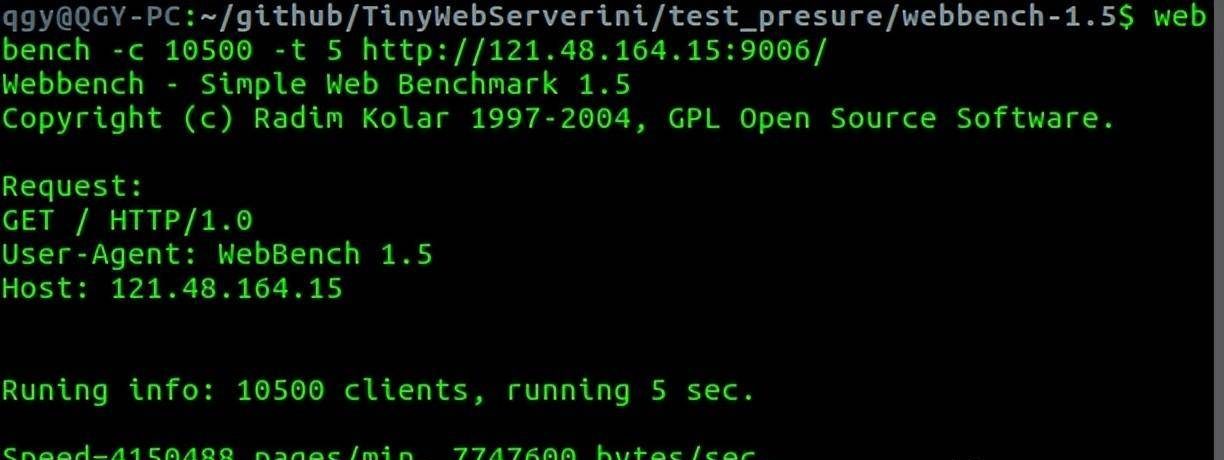

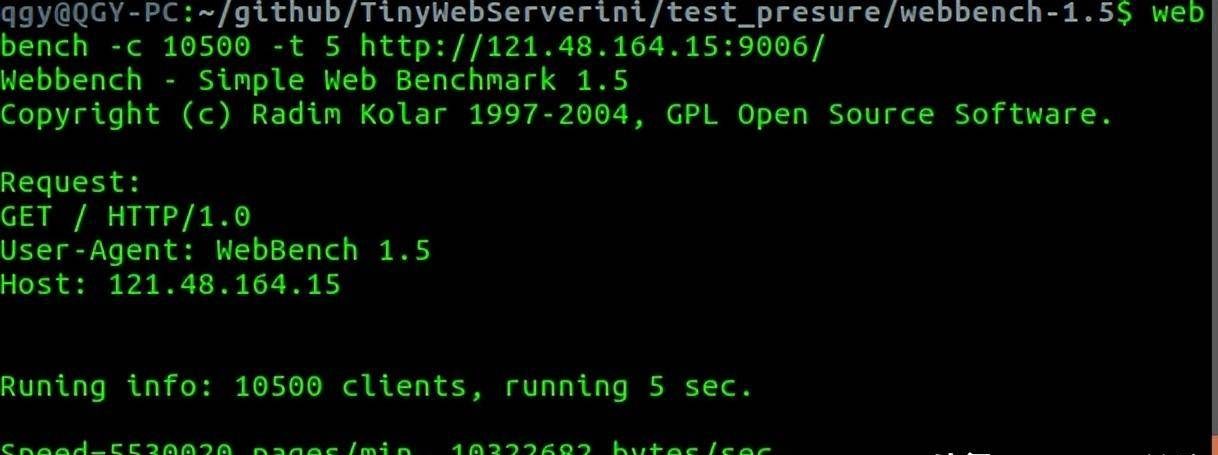

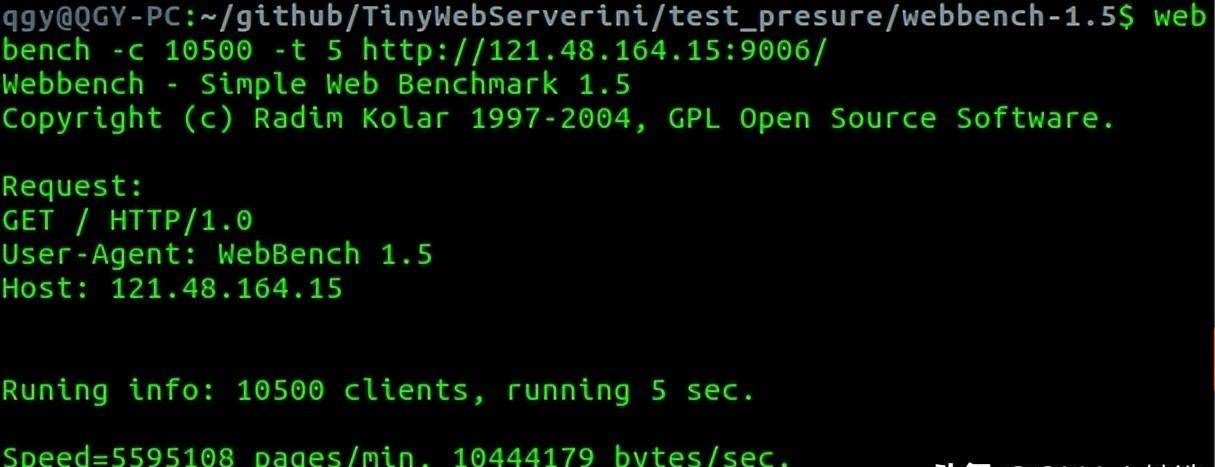

After closing the log, use Webbench to perform a stress test on the server. Using ET and LT modes respectively, listenfd and connfd can achieve tens of thousands of concurrent connections. The test results after combining the two modes are listed below.

• Total number of concurrent connections: 10500
• Server access time: 5s
• All accesses were successful

Proactor, LT + LT, 93251 QPS

Proactor, LT + ET, 97459 QPS

Proactor, ET + LT, 80498 QPS

Proactor，ET + ET，92167 QPS

Reactor，LT + ET，69175 QPS

Note: When using the webbench of this project for pressure test, if an error indicates that the webbench command cannot be found, delete the executable file webbench and recompile it.

Source code download

There are currently two versions, and the code structure between the versions has been greatly changed, and the documentation and code running methods are also inconsistent. The refactored version is more concise, and the original version (raw_version) retains the original flavor of the double code, and it is easier to start from the original version.

If you encounter a failure to download github code, or if access is too slow, you can download it from the following link to synchronize with the latest Github submission.

github: https://github.com/qinguoyi/TinyWebServer

 Reconstructed version download address: https://pan.baidu.com/share/init?surl=PozKji8Oop-1BYcfixZR0g

Extract code: vsqq

 Original version raw_version https://pan.baidu.com/share/init?surl=asMNDW-zog92DZY1Oa4kaQ

Extract code: 9wye

Fast running

Server test environment

• Ubuntu version 16.04
• MySQL version 5.7.29

Browser test environment

• Windows and Linux
• Chrome
• FireFox
• No test for other browsers

Verify that MySQL database is installed before testing

// Build yourdb library
create database yourdb;

// Create the user table
USE yourdb;
CREATE TABLE user(
    username char(50) NULL,
    passwd char(50) NULL
)ENGINE=InnoDB;

// Add data
INSERT INTO user(username,  passwd) VALUES('name',  'passwd');

Modify database initialization information in main.cpp

// Database login, password, library name
string user = "root";
string passwd = "root";
string databasename = "yourdb";

build

sh ./build.sh

Start server

./server

Browser

ip:9006

—END—

Open Source protocol: Apache2.0

Open source address:
https://github.com/qinguoyi/TinyWebServer
