Taier is a distributed visual DAG task scheduling system. In order to reduce the development cost of ETL and improve the stability of big data platform, big data developers can directly develop business logic in Taier, without worrying about the complex dependency of tasks and the implementation of the underlying big data platform architecture, and focus more on the business.

Function feature

Stability

Single point of failure: decentralized distributed mode
High availability mode: Zookeeper
Overload handling: distributed node + two-level storage strategy + queuing mechanism. Each node can handle task scheduling and submission; When a large number of tasks are performed, they are preferentially cached in the memory queue. When the number of tasks exceeds the configured maximum number of queues, all tasks are stored in the database. Task processing is consumed in a queue, which asynchronously fetches an executable instance from the database
Actual test: hundreds of enterprise customers production environment actual test

Ease of use

Support big data job scheduling Spark, Flink,
Supports many types of tasks, currently supports Spark SQL, data synchronization

Later open source: SparkMR, PySpark, FlinkMR, Python, Shell, Jupyter, Tersorflow, Pytorch, HadoopMR, Kylin, Odps,

SQL tasks (MySQL, PostgreSQL, Hive, Impala, Oracle, SQLServer, TiDB, greenplum, inceptor, kingbase, presto)
Visual workflow configuration: supports encapsulated workflows, supports single-task running, does not need to encapsulate workflows, supports drag-and-drop mode to draw DAG

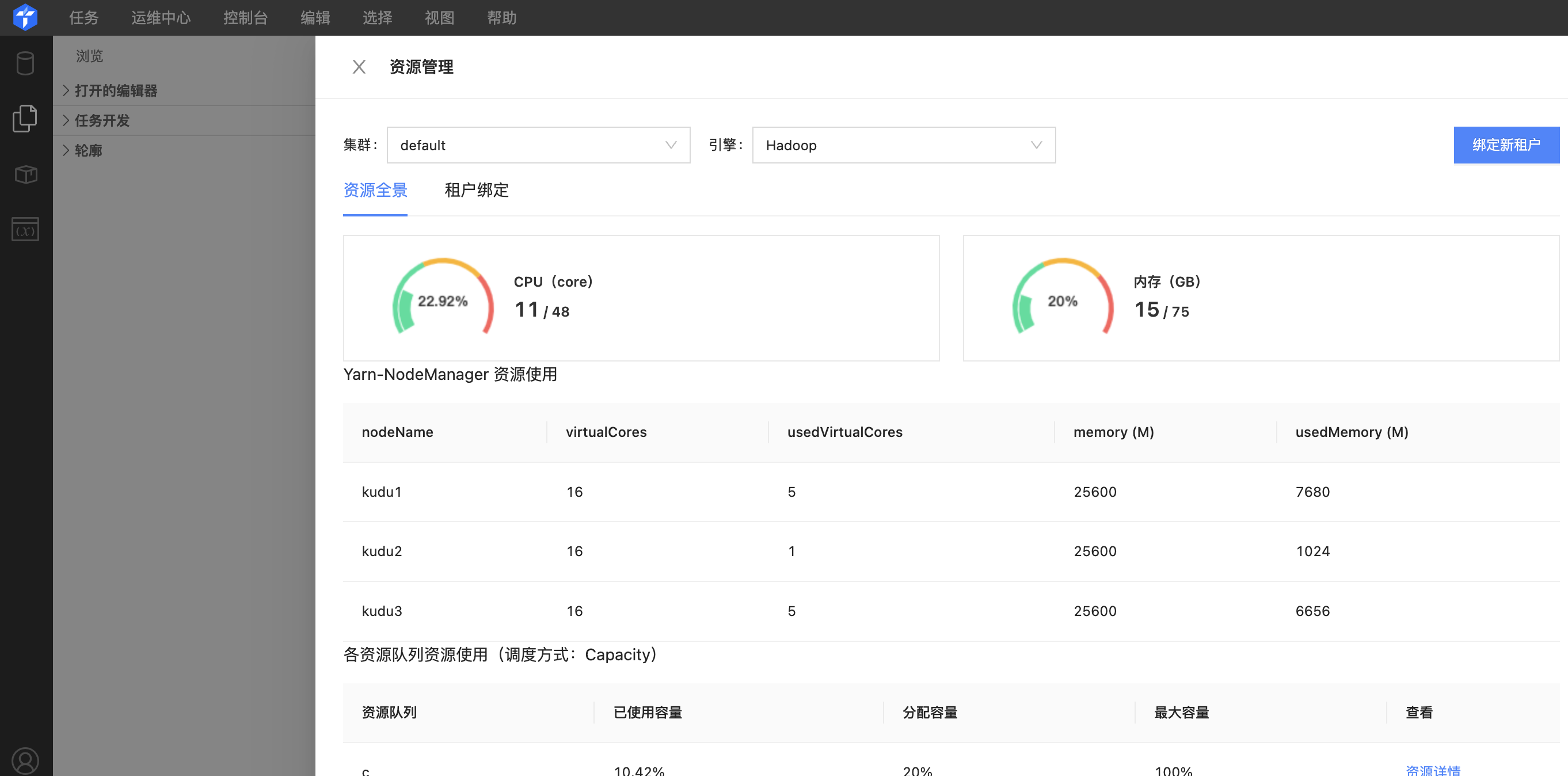

DAG monitoring interface: operation and maintenance center, support to view cluster resources, understand the remaining situation of current cluster resources, support to batch stop tasks in the scheduling queue, task status, task type, retry times, task running machine, visual variables and other key information ata glance
Scheduling time configuration: visual configuration
Multi-cluster connection: Support a scheduling system to connect multiple Hadoop clusters

Multi-version engine

Support for multiple versions of Spark, Flink and other engines

Kerberos support

Spark
Flink

System parameters

Rich, supports 3 time benchmarks, and can flexibly set the output format

Extensibility

The design considers the distributed mode, and currently supports the overall Taier horizontal expansion mode
Scheduling capability increases linearly with cluster

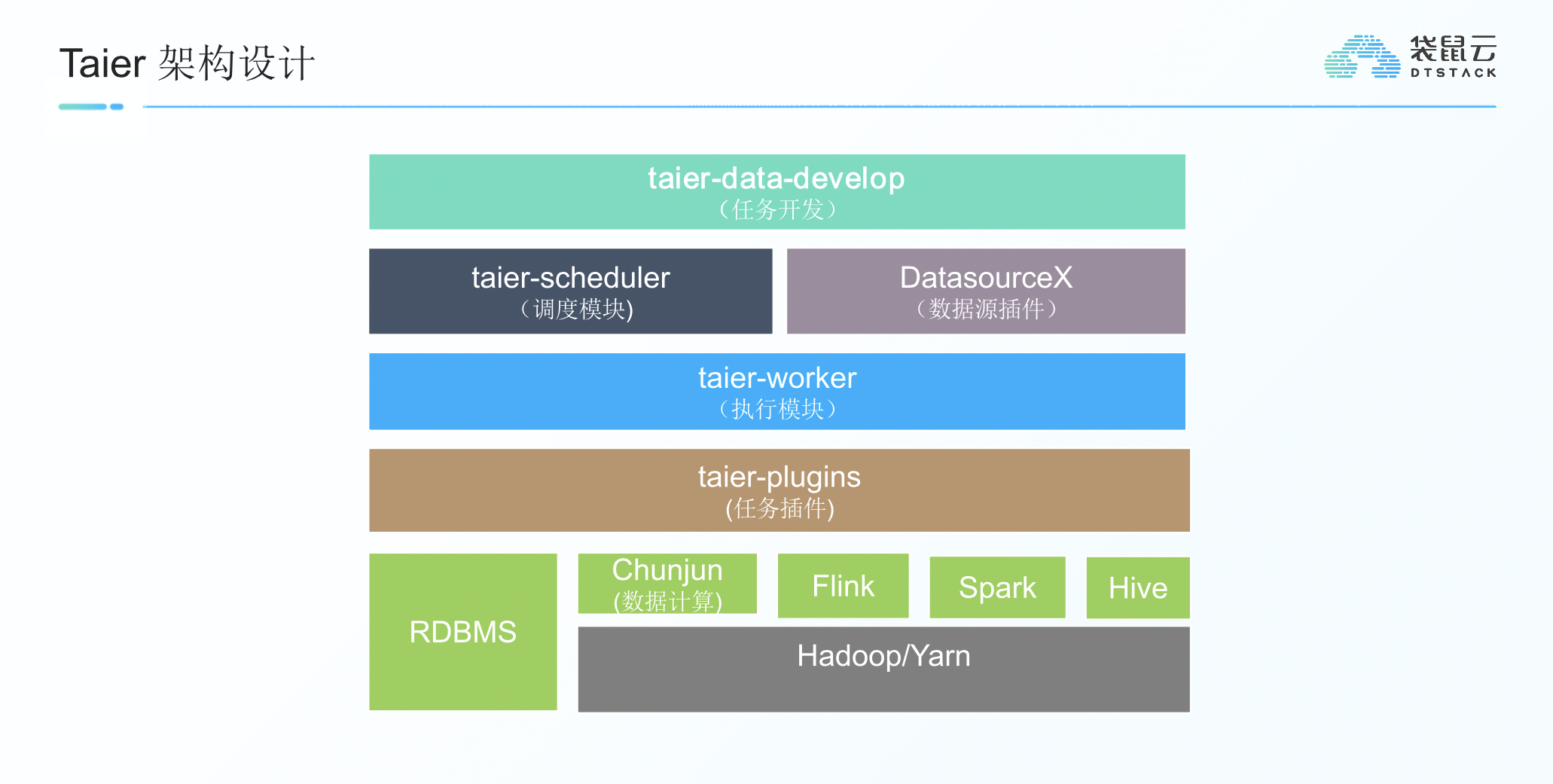

Architecture Design

DatasourceX is a data source plug-in, responsible for metadata and data operations of various types of data sources, such as obtaining table structure, previewing table data and other functions are implemented by DatasourceX
Chunjun is a batch flow unified data synchronization tool based on Flink, which can collect both static data, such as MySQL, HDFS, etc., and real-time changing data, such as MySQL binlog, Kafka, etc.

A distributed visual DAG task scheduling system插图1

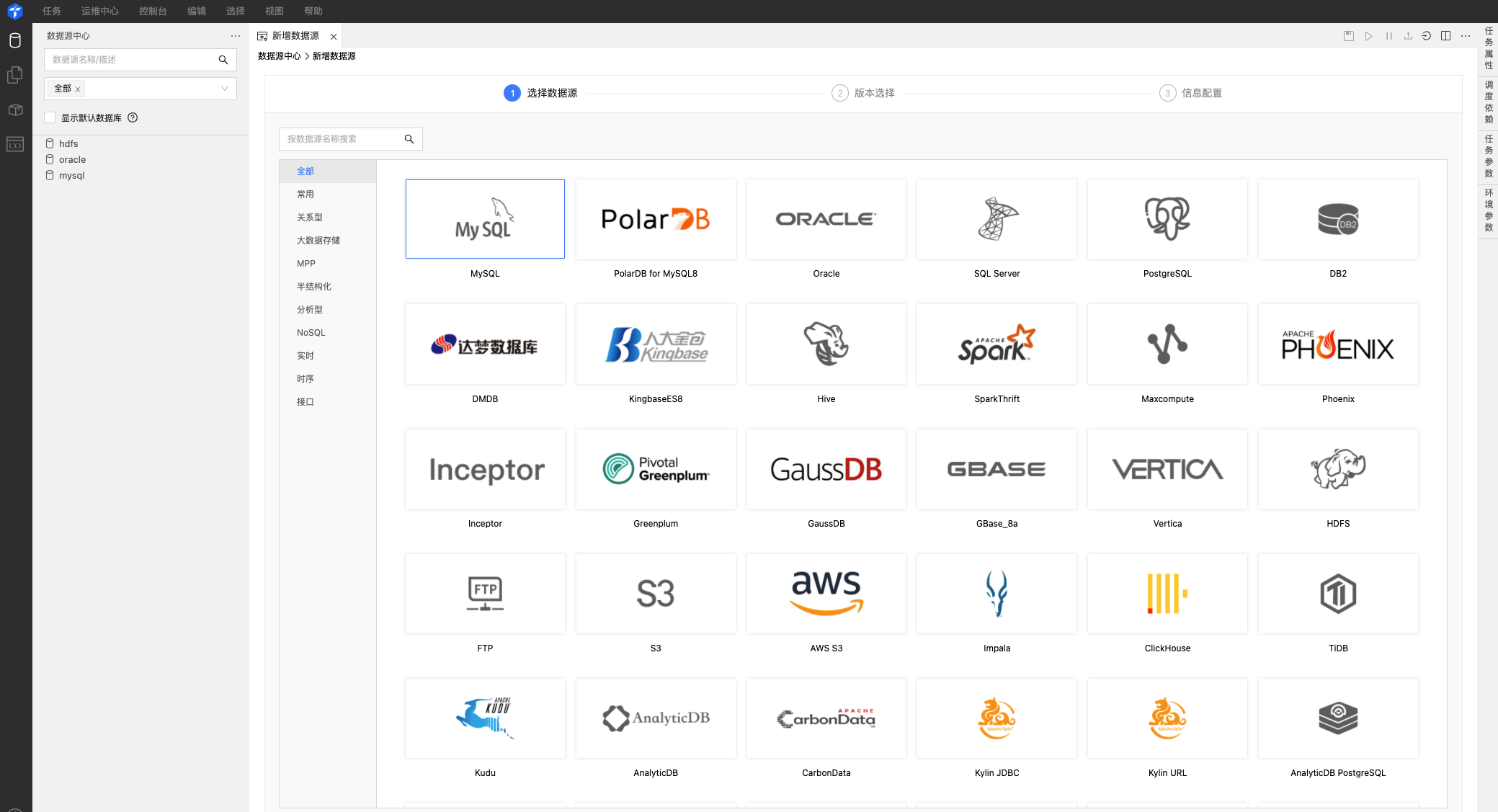

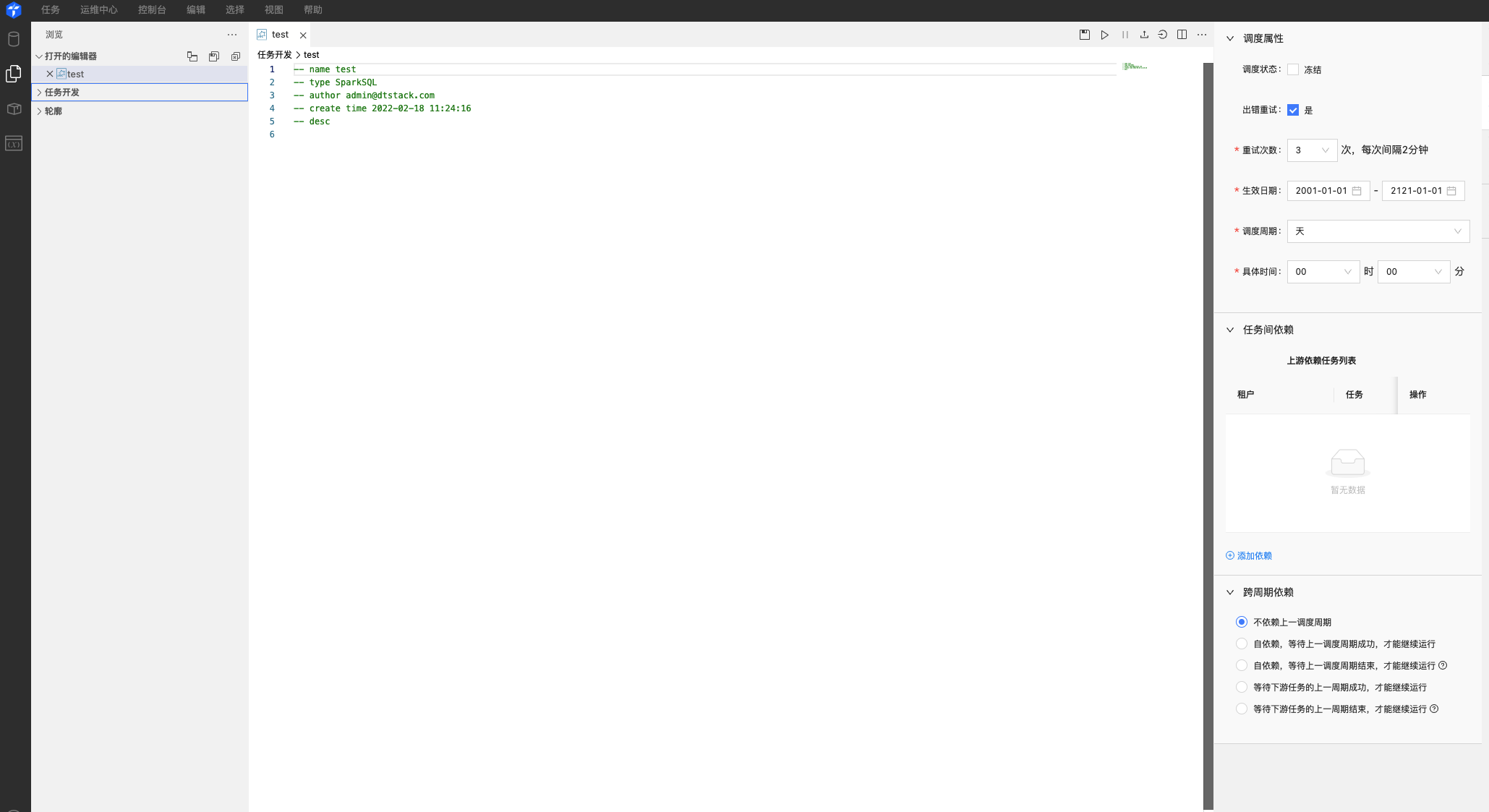

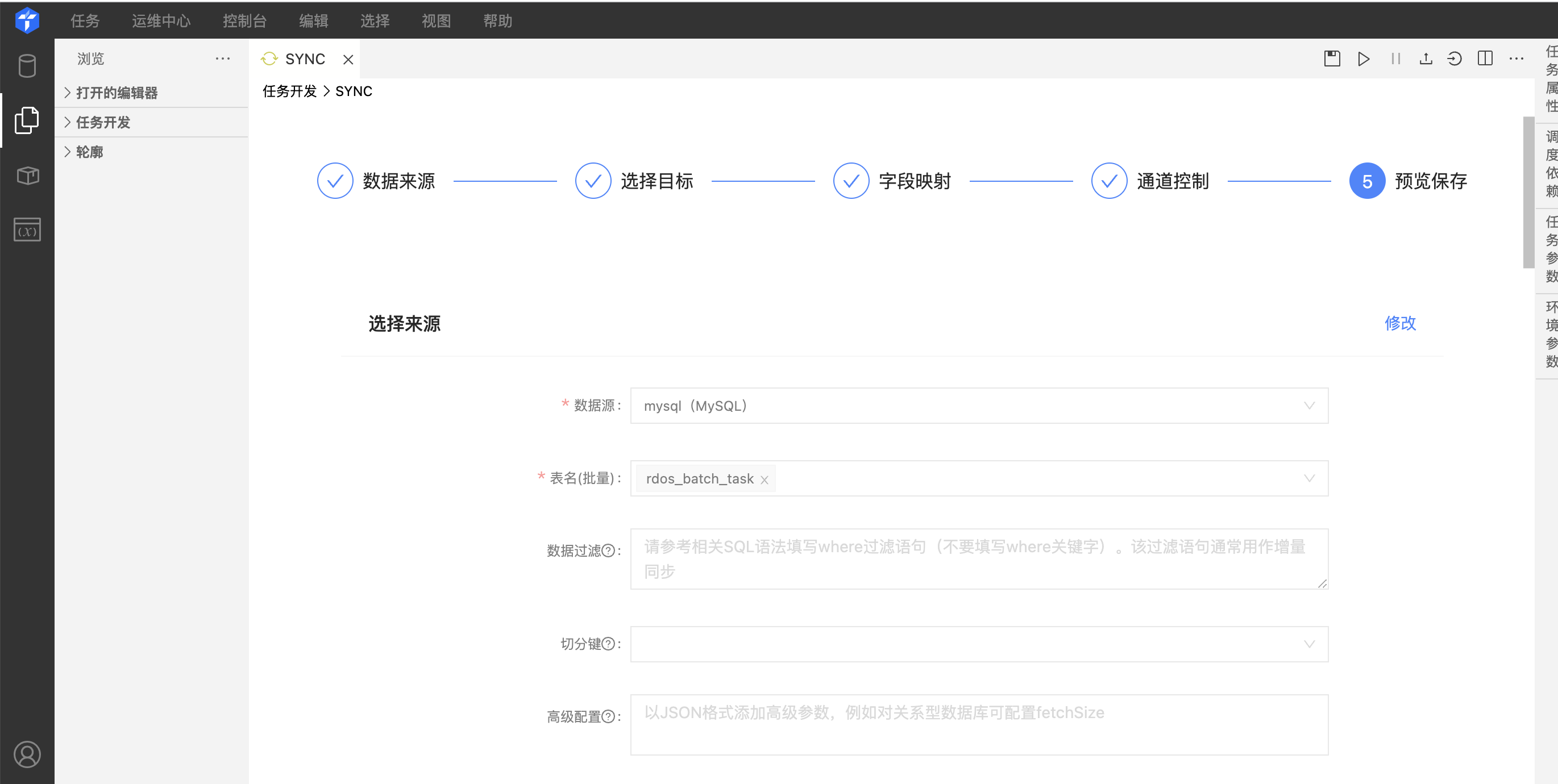

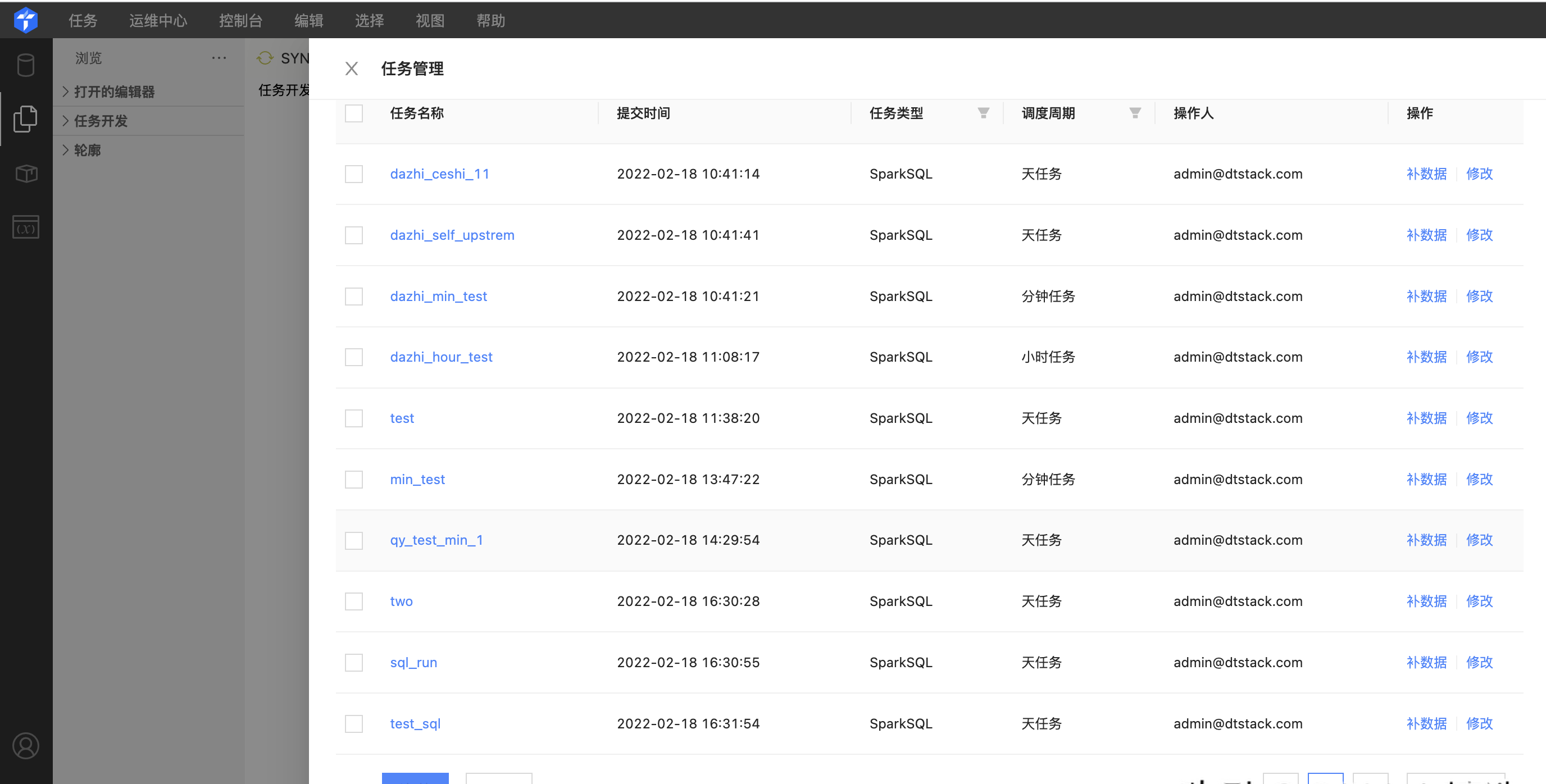

Main interface

A distributed visual DAG task scheduling system插图2

A distributed visual DAG task scheduling system插图3

A distributed visual DAG task scheduling system插图4

A distributed visual DAG task scheduling system插图5

A distributed visual DAG task scheduling system插图6

—END—

Open Source protocol: Apache2.0
